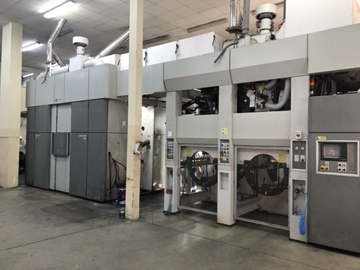

SOMA MIDI 820 -8-EG

SOMA FLEX MINI Year 2005 Fully refurbished 2013 Number of print decks 8 Max. printing width 820 mm Max. web width 850 mm Min. web width 300 mm Min. printing repeat length 300 mm Plate mandrel dia. 89,243 mm, metal lock from printing length of 350 mm) Max. printing repeat length 800 mm Printing repeat length setting by 0,1 mm, correction of set printing repeat length +/- 2% Anilox roller inner diam. 136,989 mm, circumference 500 mm, sleeve length 880 mm Max. mechanical speed 300 m/min In-line razor slitting Side of operation – left from unwinding to CI drum Unwind / Rewind rolls: max. diam 800 mm Inner core diameter 76 mm (152 mm) Max. roll weight 750 kg Min. roll diameter on flying splice unwinding 500 mm Max. speed at roll exchange on flying splice 100 m/min Dimensions (w x l x h) 3250 x 11600 x 4870 mm Weight ca. 40 000 kg Ref 3077

For more information on SOMA MIDI 820 -8-EG talk to Redfern Machinery Ltd
