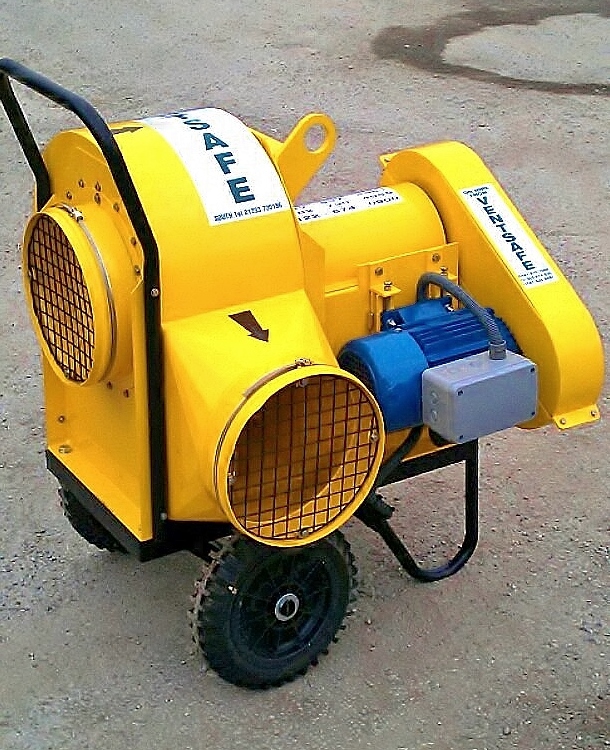

VS3000 Centrifugal Fan

VS3000 Centrifugal Fan Product Specifications Power Supply: 110V / 50Hz / 32 amp Inlet & Outlet Duct Diameter: 300mm / 12 inches Weight: 120kg Start/running current: 55 / 17 amp at 110v Sound Level: 74.1 - 78.5 dBA @ 3m Dimensions (mm): 885L x 760W x 1060H A high capacity ventilation fan for blowing or extracting non-flammable air, fumes and light airborne dusts. Popular solution for extracting exhaust fumes from engine driven plant, for general ventilation to/from work areas, and versatile for capture of coarse/medium nuisance dusts when used with filter socks. This centrifugal fan has a high suction capacity which makes it effective even for applications which involve long ducting runs. Blows 5100m3/hr or 3000cfm Extracts air, fumes and light dust Ducted airflow to 40 metres (longer distances possible) Compatible with 300mm dia. ducting This centrifugal fan sustains airflow over ducting distances up to 40 metres - when greater distances are required a series of fans can be used at 40m intervals to maintain airflow. The VS 3000 uses 300mm dia. ducting which is easy to couple together; ducting can be suspended using the integral suspension loops. This fan is versatile - in addition to air blowing and extraction applications this fan can coupled with a variety of filter options, the simplest being the attachment of a fabric filter sock to the discharge of the fan to capture coarse/medium nuisance dusts; once full the "sock" can be emptied and re-attached for further use.  See our dust control section for more information on capture of fine dusts up to HEPA grade. The solid wheels allow the VS 3000 to be moved by a single person and it's narrow enough to pass through most doors - so it's a convenient product for use in buildings.  It operates on 110v and is a robust, versatile solution for dust, fume and ventilation problems. Flexible ducting for hire with this product: 300mm diameter x 5m lengths For exhaust capture we can supply heat-resistant ducting on request. This is a "Roll-up, Plug-in, Switch-on" product. Download User Guide

For more information on VS3000 Centrifugal Fan talk to Envirogard- Specialist Hires Limited
