Telegartner MPP24-HS K (100007016) MPP24-HS K, Cat 6a, 24 Port, RJ45, STP, 1U Grey,

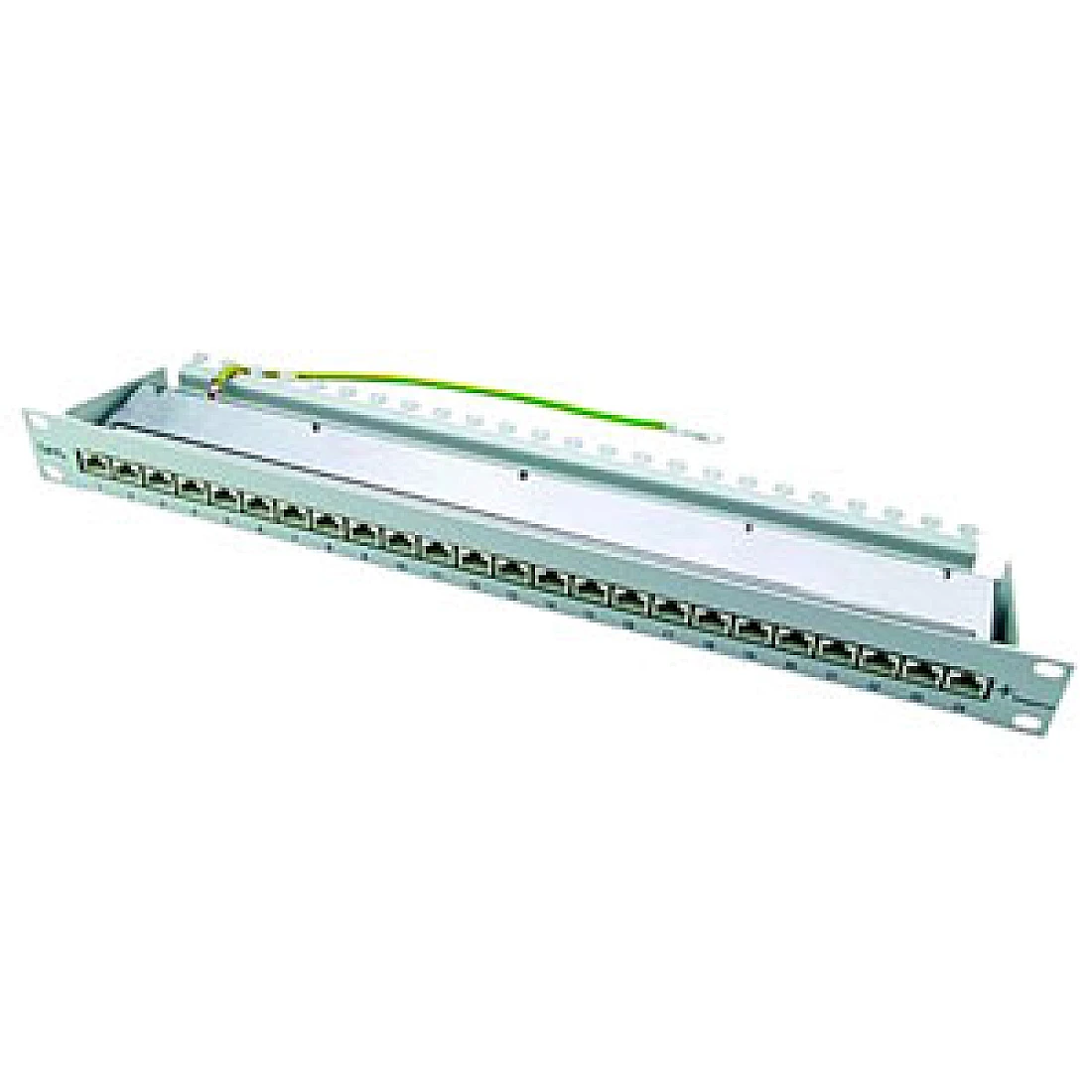

MPP24-HS K Patch Panel Shield Cat6A Grey New Telegartner Part Number :- 100007016 Download Data Sheet Download Assembly Instructions TELEGARTNER J02023A0050 19" PATCH PANEL SCREENED 1 HU CAT 6A Performance Characteristics     19"/10" rack mount unit 1 HU with 12, 16 or 24 RJ45 jacks assembled on one common PCB     no special tooling required for mounting of cover (shielded type)     printed circuit board is mounted horizontally     grounding with the enclosed earth connection cable (shielded types)     cables are terminated via IDC (LSA Plus) terminals with colour coding acc. to EIA/TIA 568 A and B     360° shielding can be connected directly on the PCB on a large contact spot using screw clamps, without need of twisting the shielding braid (shielded type)     risk of short-circuit between screening braid and data leads is minimized due to sufficient space between data terminals and screening contact     limit of 13 mm max. of untwisted length of data leads can be easily achieved without restricting an easy installation     enclosed cable ties for strain relief of the cables without need of screws and special tools     modular jacks are numbered on the front panel     housing is made of steel and powder-laminated in light grey (RAL 7035) or black; the cover is made of stainless steel     Cat.6A, Class EA 500 & Cat.6A types with overbending protection: >750 mating cylces with RJ45/RJ11/RJ12 plugs   Mechanical Characteristics Insertion force ≤ 30 N Durability (mating cycles)             ≥ 750 Material: housing             sheet steel powder coated Material: housing mini distributor             Material: housing mini distributor 3HU   Material: cover (shielded type)                 stainless sheet steel Material: insulators         PA, PBT, PBP, PE Material: PCB     FR4 Material: PCB finish         tin plated Material: contact spring                CuSn, spring steel Material: contact spring finish    min. 0,8 µm Au on 1,2 µm Ni Material: contact IDC termination             CuZn Material: IDC termination finish                 tin plated LSA Plus: Cu conductor diameter              solid 0.41 - 0.64 mm AWG 26/1 - AWG 22/1 LSA Plus: Wire diameter                0.7 - 1.6 mm Electrical Characteristics Contact resistance           ≤ 20 mΩ Insulation resistance      ≥ 500 MΩ Voltage proof: contact-contact ≥ 1000 V, DC Voltage proof: contact-shield     ≥ 1500 V, DC Current carrying capacity at 50°C               1 A PoE+ acc to IEEE 802.3at                Cat.6A, Cat.6A; Cat.6/Class E: PoE+; Cat.5e: PoE Standards Connectors         IEC 60603-7-51 / -7-5 / -7-3 / -7-41 Transmission Characteristics Category 6A (Component) for products Cat.6A ISO/IEC 11801, DIN EN 50173-1 Class EA (Permanent Link) for products Cat.6A, Cat.6A, Class EA 500         ISO/IEC 11801, DIN EN 50173-1 Class EA (Channel) for products Cat.6A, Cat.6A, Class EA 500        ISO/IEC 11801, DIN EN 50173-1 Category 5e        ISO/IEC 11801, DIN EN 50173-1 Category 3          - Gigabit Ethernet acc. to IEEE 802.3            fulfilled 10 Gigabit Ethernet acc. to IEEE 802.3an                 for Cat.6A, Cat.6A, Class EA 500 Accessories                 H00030F0014      Dust cover for RJ45 RAL 9005 black                 H00030E0014      Dust cover blue for RJ45                 H00030D0014     Dust cover green for RJ45                 H00030C0014     Dust cover red for RJ45                 H00030B0014     Dust cover RAL 1013 pearl white for RJ45                 H00030A0014     dust cover for RJ45, RAL 1013 alpine white                 L02002A0120      S/FTP 4x2xAWG23/1 Cat.7 LSZH simplex                 L02002A0089      U/FTP 4x2x0.55 mm Cat.6A LSZH simplex                 L02002A0087      U/FTP 4x2x0.55 mm Cat.6A LSZH simplex                 H02025A0343     19" Patch Panel with 5 cable guide bars (plastic)                 B05002A0012     Marking strip 12 x 430 mm self-adhesive                 M04022A0000    Mounting shelf for 19" patch panels up to 250 mm housing depth                 B06013A0010     Cable Management bar for 10" / 19" patch panels                 H02025A0117     Cable Management plate for 19" patch panels 2 HU                 H02025A0116     Cable Management plate for 19" patch panels 1 HU                 N01002A0000     Single tool for IDC termination (LSA Plus) without wire cutter                 H06000A0001     Fixing set for Patch Panels (4 screws M6x16 with nuts)                 N01002A0001     LSA Plus Tool                 H02025A0084     19" Dummy plate 1 HE
