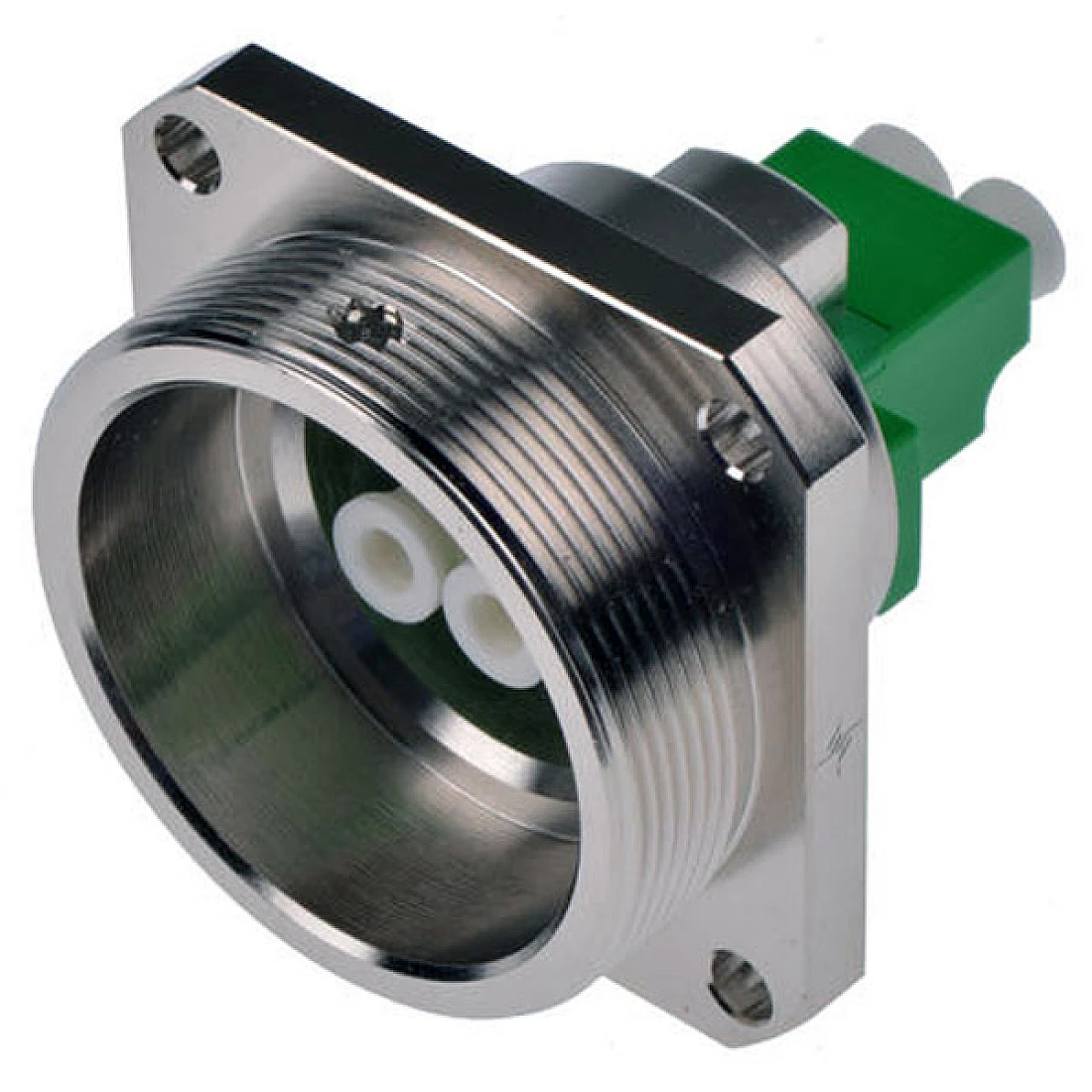

Telegartner J68071A0001 (100007404) LC to LC Single Mode Duplex Fibre Optic Adapter, 0.5dB Insertion Loss

Telegartner J68071A0001 LC to LC Single Mode Duplex Fibre Optic Adapter, 0.5dB Insertion Loss New Telegartner Part Number :- 100007404 DOWNLOAD DATA      DOWNLOAD PDF     DOWNLOAD ASSEMBLY INSTRUCTION Product description The TOC series RJ45 coming with the newly available field assembly RJ45 plug MFP8 Cat.6A and RJ45 keystone AMJ-S Module Cat.6A is available as a set. They can be attached to solid and stranded conductor cables with cable outer diameter max. 9.5 mm on site without the need for any special tools. For line extensions, the TOC Coupler IP68 is your first choice. It can be easily integrated with no negative effects on performance of the connection. The TOC series with LC Duplex plugs captivates due to its flexibility and ease of installation. Customers can choose whether they work with pre-terminated cables feed into TOC plug housing from the backside or they terminate the LC plugs themselves on site. The enclosed LC holding frame with elongated release latch accepts the LC plugs firmly and offers an additional tool free strain relief. By means of the elongated release latch the LC plugs can be mated & unmated into SFP+ transceivers or LC Duplex adaptors effortlessly even in confined installation environments. In addition, the several installation positions of SFP+ transceivers no longer form a problem as the holding frame incorporating the LC plugs easily adjusts to them. For line extensions, the TOC Coupler IP68 LC Duplex is your first choice. It can be easily integrated with no negative effects on performance of the connection. Performance Characteristics     suitable for 10 Gigabit Ethernet acc. to IEEE 802.3an     suitable for PoE+ acc. to IEEE 802.3 at     360° shielding     temperature range: -40° to +85°C     protection class IP68 acc. to IEC 60529     protection cap with protection class IP68     plug & adaptor acc. to IEC 61754-20 (circonia ceramics)     Singlemode/Multimode (PC) & Singlemode (APC) types     Insertion Loss: plug Multimode max. 0.4 dB, Singlemode APC max. 0.5 dB     Return Loss: plug: Multimode min. 30 dB, Singlemode APC min. 60 dB     4-hole mounting, mounting cut out Ø 30.5 mm     optional for SFP+ Transceiver   Mechanical Characteristics Durability (mating cycles)             ≥ 100 Material: flange housing               brass, 5 µm Ni plated Material: O-ring                silicone red Material: adaptor housing            plastic (PEI UL94 V-0) Material: split sleeve      Zirkonia ceramic Material: dust cap            plastic Material: bulkhead protective cap IP68 brass, 5 µm Ni plated Standards Generic cabling systems               ISO/IEC 11801, EN 50173-1 Connectors         Degrees of protection provided by enclosures (IP code)                IEC 60529 Fiber optic interconnectiong devices and passive components- Basic test and measurement procedures               IEC61300-2-x; IEC61300-3-x Optical Characteristics Reproducbility insertion loss       max. 0.1 dB Telegärtner – UK Distributor Connectors Cables Specialists  Between us we offer you the best contacts for your success Maximum customer orientation and unbroken force of innovation:  On this basis Telegärtner develops, produces and sells professional and tailor-made connection technology solutions as well as high-precision turned parts and plastic injection mouldings to customers all over the world.

At Connectors Cables Specialists (CCS) Ltd, we supply a wide range of high-quality connectors, cables, cable assemblies and radio frequency components. Established in 1983 and based in Harlow, Essex, we support customers across telecommunications, broadcasting, electronics, industrial engineering, networking, security and amateur radio applications.

We provide an extensive selection of coaxial connectors, including BNC, TNC, SMA, SMB, SMC, N Type, UHF, F Type, MCX and MMCX options. Our product range also includes RF adaptors, attenuators, lightning protection equipment, grounding kits, coaxial cables, fibre optic products, industrial terminals, mains leads, plugs, jacks and network infrastructure products.

Alongside our standard product range, we offer a bespoke cable assembly service. We work closely with our customers to manufacture tailor-made assemblies that meet specific electrical, mechanical and environmental requirements. We can also produce standard coaxial cable assemblies with short lead times, helping customers receive reliable components without unnecessary delays.

We supply products from a number of established manufacturers and specialist brands, including CommScope, Binder, Telegärtner, Radiall, Rosenberger, Times Microwave Systems, Huber+Suhner and IMS Connector Systems. We also provide crimping tools, cable cutters, stripping equipment, testing products and installation accessories.

With decades of industry experience, we are committed to providing dependable customer service, practical technical knowledge and flexible connectivity solutions. Whether customers require individual components or complete cable assemblies, we aim to help them find the right products for demanding commercial, technical and industrial applications.

For more information on Telegartner J68071A0001 (100007404) LC to LC Single Mode Duplex Fibre Optic Adapter, 0.5dB Insertion Loss talk to Connectors Cables Specialists (CCS) Ltd
