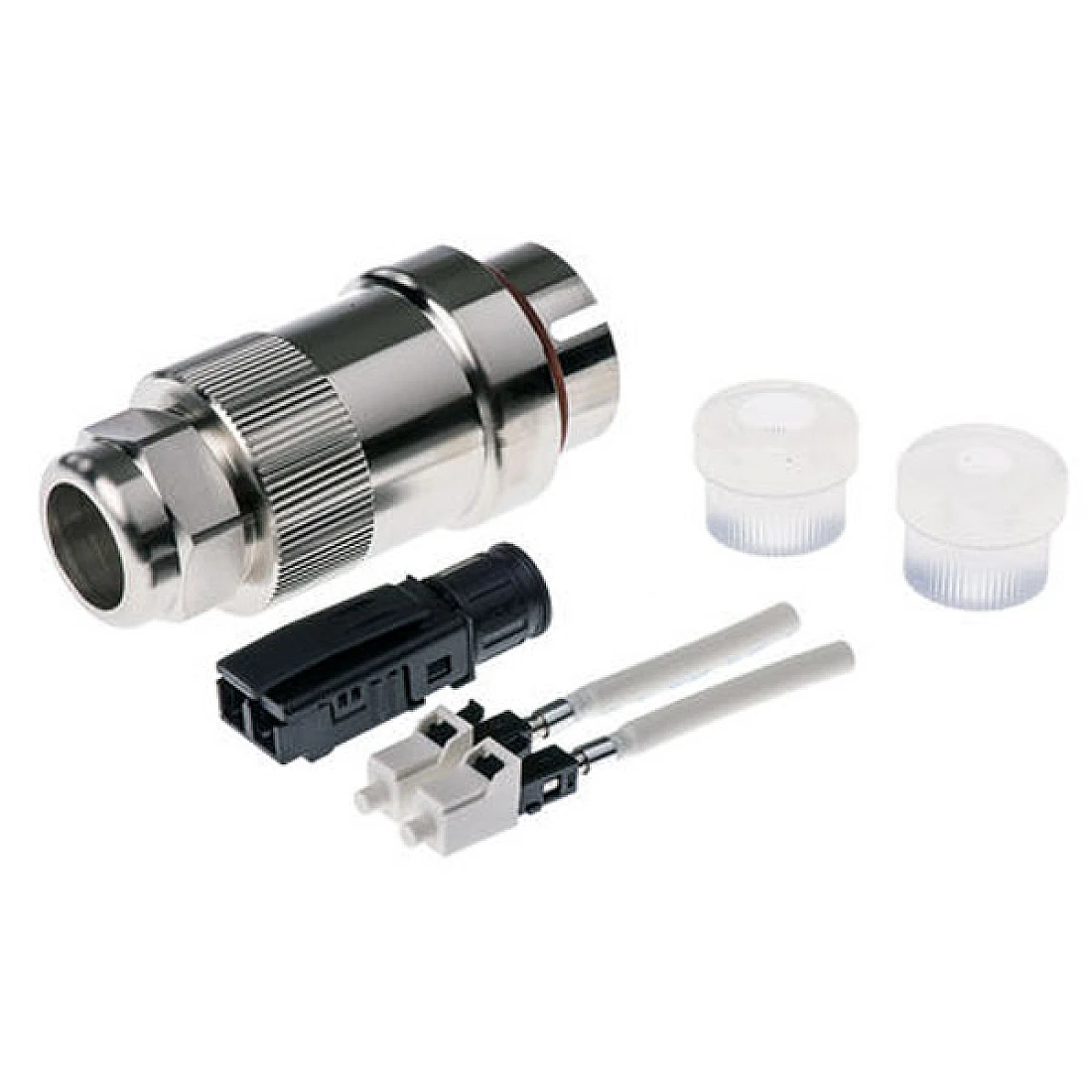

Telegartner J68070A0000 (100007394) LC PC Multimode Duplex Fibre Optic Connector, 0.4dB Insertion Loss

Telegartner, LC PC Multimode Duplex Fibre Optic Connector, 0.4dB Insertion Loss New Telegartner Part Number :- 100007394 DOWNLOAD DATA      DOWNLOAD PDF     DOWNLOAD ASSEMBLY INSTRUCTION Product description The TOC series with LC Duplex plugs captivates due to its flexibility and ease of installation. Customers can choose whether they work with pre-terminated cables feed into TOC plug housing from the backside or they terminate the LC plugs themselves on site. The enclosed LC holding frame with elongated release latch accepts the LC plugs firmly and offers an additional tool free strain relief. By means of the elongated release latch the LC plugs can be mated & unmated into SFP+ transceivers or LC Duplex adaptors effortlessly even in confined installation environments. In addition, the several installation positions of SFP+ transceivers no longer form a problem as the holding frame incorporating the LC plugs easily adjusts to them. For line extensions, the TOC Coupler IP68 LC Duplex is your first choice. It can be easily integrated with no negative effects on performance of the connection. Performance Characteristics       plug & adaptor acc. to IEC 61754-20 (circonia ceramics)     Singlemode/Multimode (PC) & Singlemode (APC) types     Insertion Loss: plug Multimode max. 0.4 dB, Singlemode APC max. 0.5 dB     Return Loss: plug: Multimode min. 30 dB, Singlemode APC min. 60 dB     temperature range: -40° to +85°C     protection class IP68 acc. to IEC 60529     protection cap with protection class IP68     single cable diameter: 2.0 mm     cable outer diameter: 4 - 9.5 mm     LC holding frame with elongated release latch and strain relief   Mechanical Characteristics Durability (mating cycles)             ≥ 100 Material: cap nut, sleeve              brass, 5 µm Ni plated Material: O-ring                silicone red Material: sealing insert silicone transparent Material: protection cap IP68      brass, 5 µm Ni plated Material: body PBT UL94 V0 black Material: crimp sleeve   Copper nickel-plated Material: ferrule               Multimode: zirconia 127 µm -0/+4 µm; Singelmode/APC: zirconia 125.5 µm -0/+1 µm Material: dust cap            plastic buffered optical fiber diameter                 0.9 mm Subcable diameter          1.8 - 2.0 mm Overall cable diameter 4.0 - 9.5 mm Standards Generic cabling systems               ISO/IEC 11801, EN 50173-1 Connectors         Degrees of protection provided by enclosures (IP code)                IEC 60529 Fiber optic interconnectiong devices and passive components- Basic test and measurement procedures               IEC61300-2-x; IEC61300-3-x Telegärtner – UK Distributor Connectors Cables Specialists  Between us we offer you the best contacts for your success Maximum customer orientation and unbroken force of innovation:  On this basis Telegärtner develops, produces and sells professional and tailor-made connection technology solutions as well as high-precision turned parts and plastic injection mouldings to customers all over the world.
