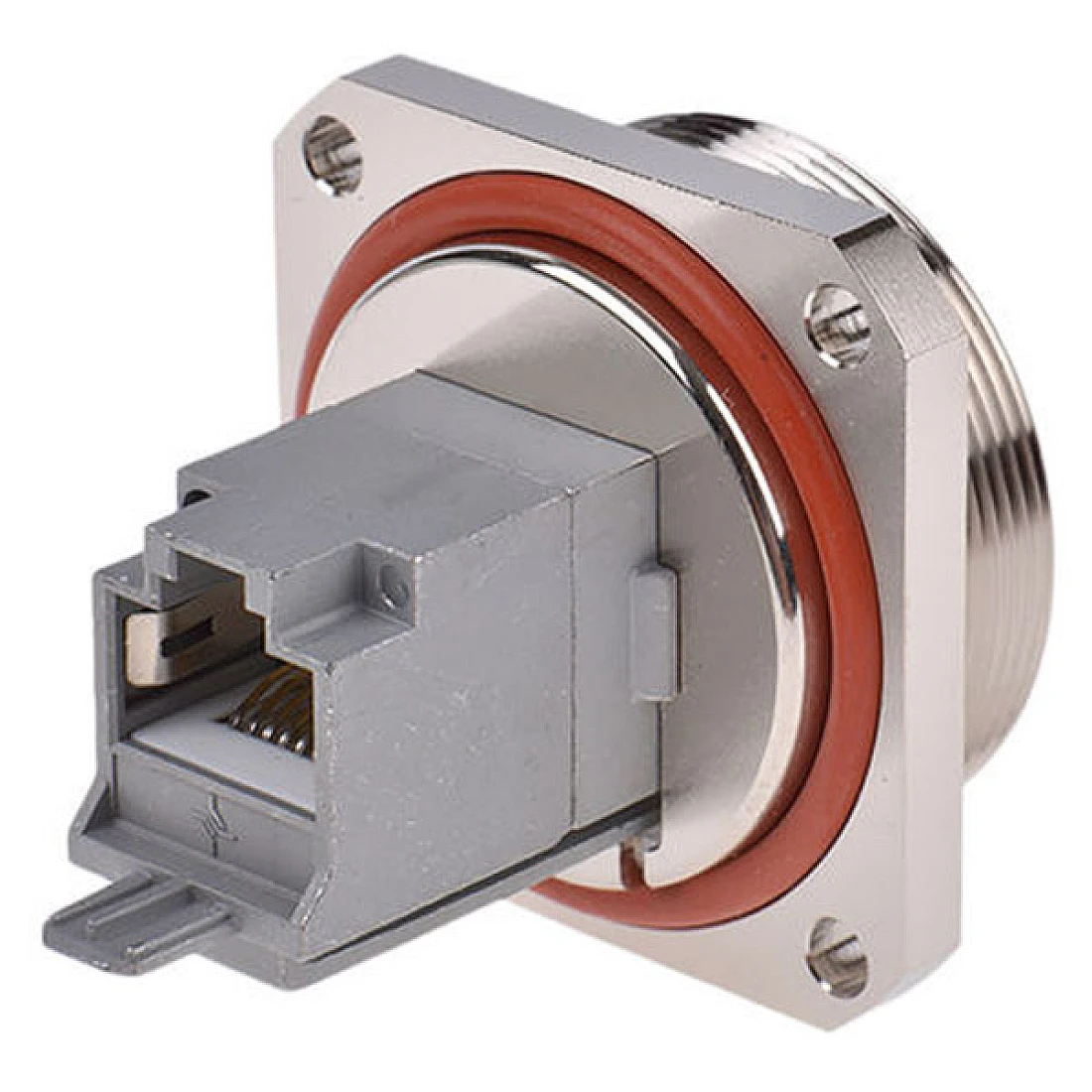

Telegartner J60020A0002 (100007381) TOC bulkhead set IP68; AMJ Coupler K Cat.6; nickel-plated brass

J60020A0002 - TOC bulkhead set IP68; AMJ Coupler K Cat.6; nickel-plated brass  New Telegartner Part Number :- 100007381 DOWNLOAD DATA      DOWNLOAD PDF     DOWNLOAD ASSEMBLY INSTRUCTION Product description TOC stands for Telecommunications Outdoor Connectors and offers cabling professionals the reliability and flexibility they need for toughest applications. The handy, easy to install TOC connectors are used for data- and telecommunications in mobile radio, process-, utility- and traffic automation, or security applications but also in the harsh environment of machine and plant engineering. The TOC series is available in nickel-plated brass for RJ45 Cat.6A, FO LC Duplex and MPO/MTP® connectors. Compliance with the specifications of protection class IP68 and due to its excellent material properties, the TOC series can be installed even in harsh conditions within a temperature range from -40°C to 85°C. To lock, relief of strain and seal the connection, one turning movement is necessary and no further procedures are required. Customers benefit: a fast, error free and easy installation, high transmission reliability and resilience and more flexibility in the network design.   The TOC series RJ45 coming with the newly available field assembly RJ45 plug MFP8 Cat.6A and RJ45 keystone AMJ-S Module Cat.6A is available as a set. They can be attached to solid and stranded conductor cables with cable outer diameter max. 9.5 mm on site without the need for any special tools. For line extensions, the TOC Coupler IP68 is your first choice. It can be easily integrated with no negative effects on performance of the connection. Performance Characteristics       suitable for 10 Gigabit Ethernet acc. to IEEE 802.3an     suitable for PoE+ acc. to IEEE 802.3 at     360° shielding     temperature range: -40° to +85°C     protection class IP68 acc. to IEC 60529     protection cap with protection class IP68     RJ45 AMJ-S module Cat.6A acc. to IEC 60603-7-51 (500 MHz)     Cu-conductor: solid 0.4 - 0.64 mm (AWG26/1 – AWG22/1); stranded 0.46 - 0.76 mm (AWG27/7 – AWG22/7)     insulation diameter: 0.9 - 1.6 mm     4-hole mounting, mounting cut out Ø 30.5 mm     UL listed (E 244889)   Mechanical Characteristics Insertion force ≤ 30 N Durability (mating cycles)             ≥ 100 Material: housing             brass, 5 µm Ni plated Material: O-ring                silicone red Material: adaptor housing            zinc diecast Material: shield                 German silver Material: insulation body              PA UL94 V2 pure white Material: PCB     FR4 UL94 V0 Material: PCB finish         chem. tin-plated Material: contacts            spring steel Material: contact finish min. 0,8 µm Au on 1,2 µm Ni Material: IDC termination finish                 min. 3-6 µm Sn Material: protection cap IP68      brass, 5 µm Ni plated Electrical Characteristics Current carrying capacity at 50°C               1 A PoE+ acc to IEEE 802.3at                Adequate for Power over Ethernet+ Standards Connectors         IEC 60603-7-51 Generic cabling systems               ANSI/TIA/EIA-568-C.2; ISO/IEC 11801; DIN EN 50173-1 Degrees of protection provided by enclosures (IP code)                IEC 60529 Transmission Characteristics 10 Gigabit Ethernet acc. to IEEE 802.3an                 Adequate for 10 Gigabit Ethernet Class EA (Channel)           ISO/IEC 11801, DIN EN 50173-1 Category 6A       ANSI/TIA/EIA-568-C.2 Category 6          ISO/IEC 11801, DIN EN 50173-1
