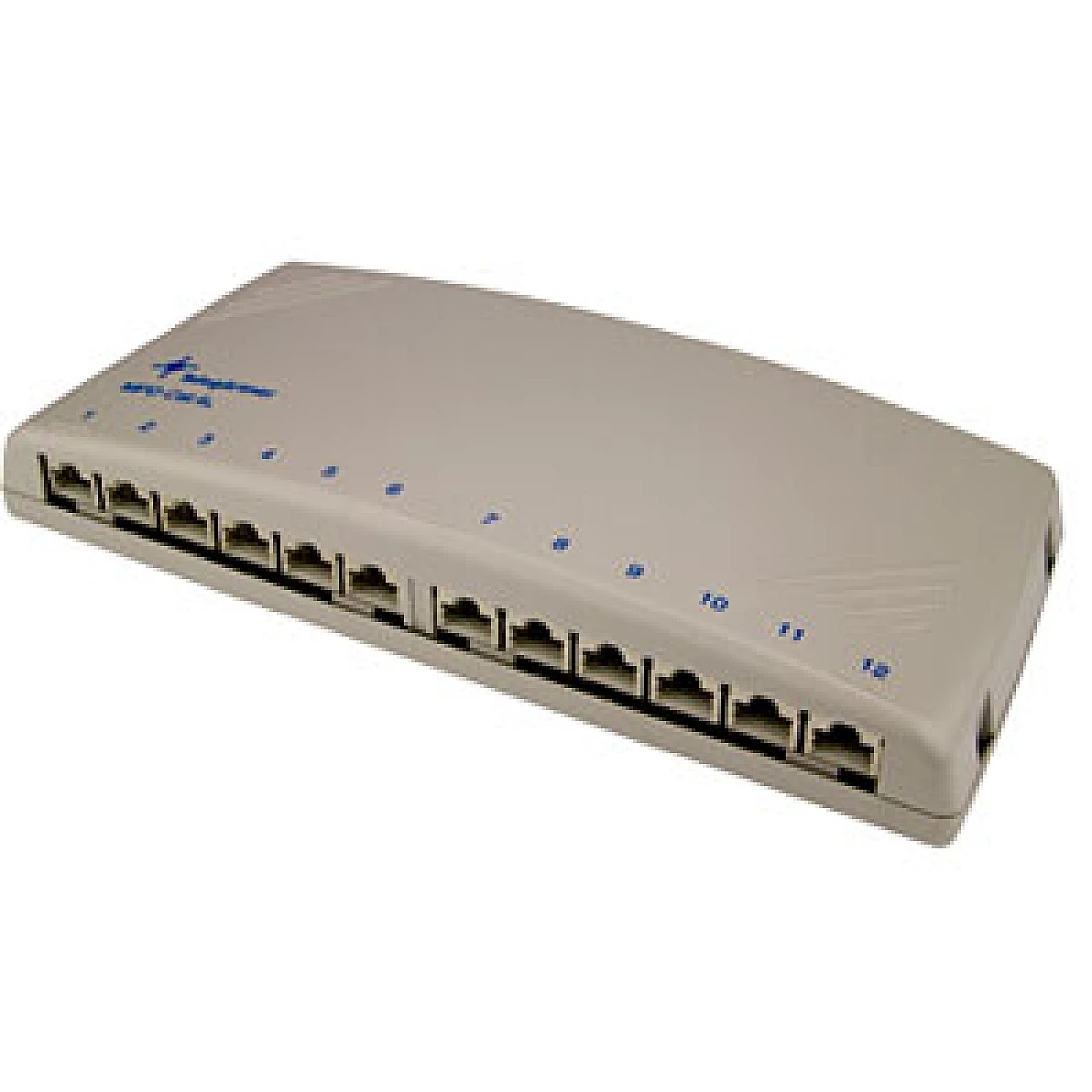

Telegartner J02022A0053 (100006998) MPD12-HS K, Mini Distributor, Shielded Cat6A

TELEGARTNER J02022A0053 MPD12-HS MINI DISTRIBUTOR CAT6A New Telegartner Part Number :- 100006998 Download Data Sheet Download Assembly Instructions Product description Networks which have a small number of participants require simple and cost-effective distributors without 19" racks and separate EDP rooms. For this purpose we have developed distributors which are suitable as cable distributors or as connection devices for groups of participants at their workdesk. Up to 12 participants can be connected using shielded or unshielded installation cabling. The cables can be led into the housing from behind or from below. The distributor can be affixed to the wall, in a cable duct or simply placed on to the desk. A 19" rack mount version (with 3 HU) is also available. Performance Characteristics       Mini distributor MPD6 and MPD12 with 6 resp. 12 RJ 45 jacks assembled on one common PCB     Mini distributors MPD8 AMJ/UMJ and MPD12 AMJ/UMJ for 8 resp. 12 AM-S/AMJ/UMJ modules or couplers     printed circuit board is mounted horizontally in the housing, shielded versions are provided inside with a metal shielding cover; in addition, an earth connection cable can be connected to the PCB (with screw M4)     no special tooling required for mounting of cover (shielded type)     enclosed cable ties for strain relief of the cables without need of screws and special tools     360 degrees shielding of MPD-HS can be connected directly on the PCB on a large contact spot using a screw clamp without need of twisting the braid     cables are terminated via IDC (LSA Plus) terminals with colour coding acc. to EIA/TIA 568A and B     limit of 13 mm max. of untwisted length of data leads can be easily achieved without restricting an easy installation     housing made of thermoplastic, halogene-free, with non-slip bumpers     shielding cover made of stainless steel     19" rack-mount design size 3 HU/8 PU with 6xRJ45 and 3 HU/10 PU with 12xRJ45 available, front plate anodized aluminium     Cat.6A- & Cat.6A types with overbending protection: suitable for 6- (RJ11/12) and 8-pin connectors (RJ45); can be used in the modular jack without additional installation kits.   Mechanical Characteristics Insertion force ≤ 30 N Durability (mating cycles)             ≥ 750 Material: housing             Material: housing mini distributor             ABS Material: housing mini distributor 3HU   stainless sheet steel Material: cover (shielded type)                 stainless sheet steel Material: insulators         PBT Material: PCB     FR4 Material: PCB finish         tin plated Material: contact spring                spring steel Material: contact spring finish    min. 0,8 µm Au on 1,2 µm Ni Material: contact IDC termination             CuZn Material: IDC termination finish                 tin plated LSA Plus: Cu conductor diameter              solid 0.41 - 0.64 mm AWG 26/1 - AWG 22/1 LSA Plus: Wire diameter                0.7 - 1.6 mm Electrical Characteristics Contact resistance           ≤ 20 mΩ Insulation resistance      ≥ 500 MΩ Voltage proof: contact-contact ≥ 1000 V, DC Voltage proof: contact-shield     ≥ 1500 V, DC Current carrying capacity at 50°C               1 A PoE+ acc to IEEE 802.3at                PoE+ Standards Connectors         IEC 60603-7-51 / -7-41 Transmission Characteristics Category 6A (Component) for products Cat.6A ISO/IEC 11801, DIN EN 50173-1 Class EA (Permanent Link) for products Cat.6A, Cat.6A, Class EA 500         ISO/IEC 11801, DIN EN 50173-1 Class EA (Channel) for products Cat.6A, Cat.6A, Class EA 500        ISO/IEC 11801, DIN EN 50173-1 Category 5e        - Category 3          - Gigabit Ethernet acc. to IEEE 802.3            - 10 Gigabit Ethernet acc. to IEEE 802.3an                 for Cat.6A Accessories                 H06000A0056     Mounting set for Mounting rail adaptor                 B05002A0010     Marking strip for MPD12 (J02022A0053, J02022A0054, J02022A0052)                 N01002A0000     Single tool for IDC termination (LSA Plus) without wire cutter                 N01002A0001     LSA Plus Tool Telegärtner – UK Distributor Connectors Cables Specialists  Between us we offer you the best contacts for your success Maximum customer orientation and unbroken force of innovation:  On this basis Telegärtner develops, produces and sells professional and tailor-made connection technology solutions as well as high-precision turned parts and plastic injection mouldings to customers all over the world.
