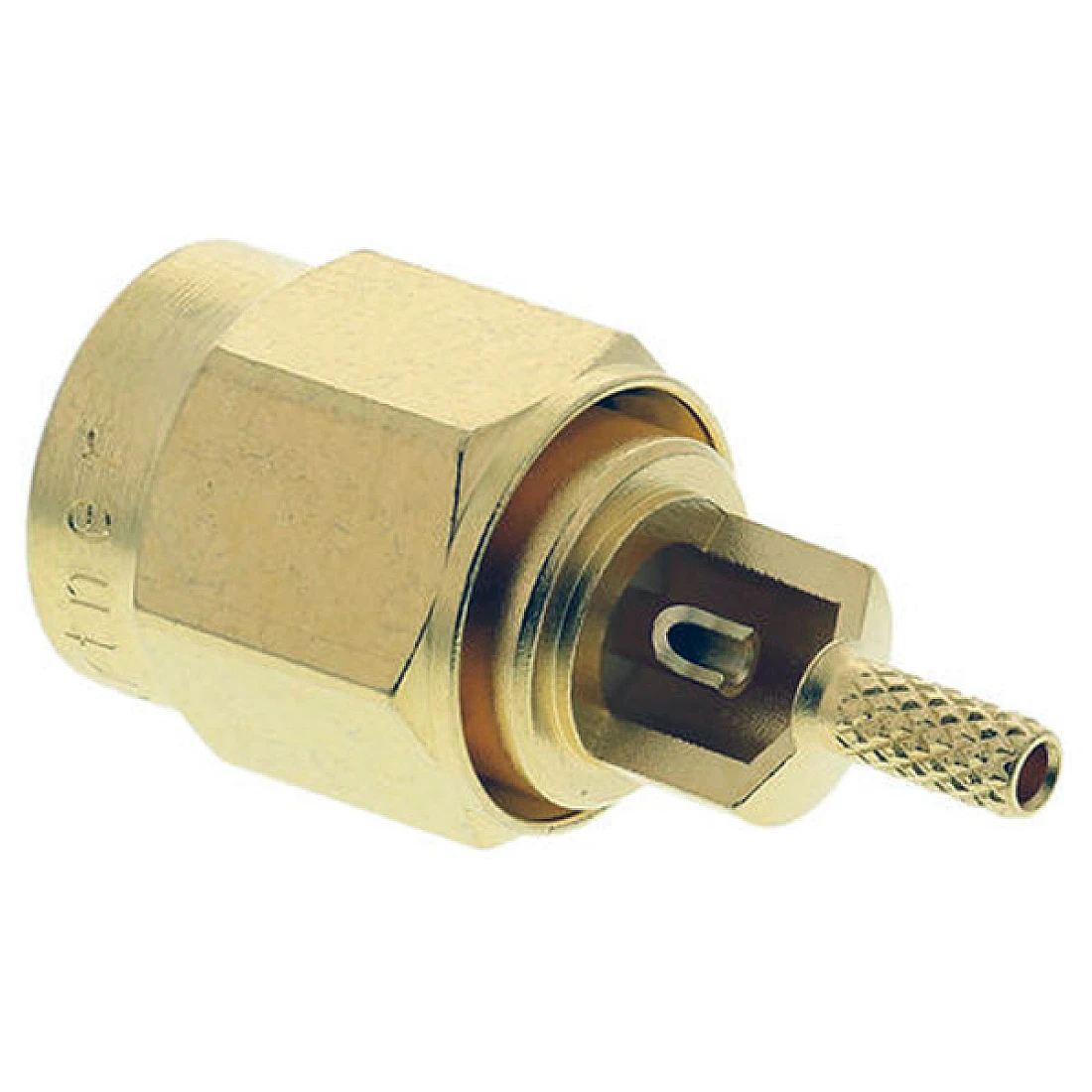

Telegartner J01150A0601 (100024651) SMA Straight Crimp Plug for RG178BU

Telegartner J01150A0601 SMA Straight Crimp Plug for RG178BU New Telegartner Part Number:- 100024651 Technical Attributes Z 50 Ω Cable group; cable G7 (RG-316/U) RG-188A/U RG-174/U KX 3B RG-316/U KX 22A Remarks pressure sleeve Assembly A03 MIL-Std. - Product description The BNC series is the most commonly used coax connector. With its bayonet coupling mechanism this connector can be used up to 4 GHz. Both 50 and 75 Ω impedances are available. Connector styles are available for flexible, conformable and semi-rigid cable types. Versions of the BNC connector are available for mounting to printed circuit boards using both through-hole soldered and through-hole press-fit techniques. Both crimp and clamp cable termination processes are used for this series. BNC connectors are used for signal, data and video transmission applications. Mating face sealing for BNC connectors between plug and jack (mated) according to IP 54. The classifications are general statements for the relevant series. Individual connectors may deviate from the values shown. If in doubt, please consult our engineers. Mechanical Characteristics Durability (mating cycles) ≥ 500   Material: spring contacts CuBe2; CuPb1.15Ni1 Material: outer conductor CuZn39Pb3 Material: other metal parts CuZn39Pb3 Material: insulators PTFE; PE PTFE; PE Material: gaskets Silicone Silicone Finish: Inner conductor Cu1Ni2Au0.8 Finish: Outer conductor Cu2Ni5 (Nickel); Ag2CuSnZn0.5 (Optargen) Finish: Other metal parts Cu2Ni5 Climatic Characteristics Climatic category acc. to IEC 60068 - 1 Types with PTFE insulator 40/155/21 Types with PE insulator 40/75/21 Electrical Characteristics Contact resistance inner conductor ≤ 20 mΩ Contact resistance outer conductor ≤ 5 mΩ Insulation resistance ≥ 5 GΩ Voltage proof 1.5 kVeff/50 Hz Impedance 50 Ω/(75 Ω) Return loss: Straight style ≥ 20 dB/3 GHz (50 Ω types) Return loss: Angle style ≥ 17.7 dB/3 GHz (50 Ω types) Working voltage ≤ 500 Veff/50 Hz Frequency range up to 4 GHz Standards IEC 61 169-8 Download Datasheet
