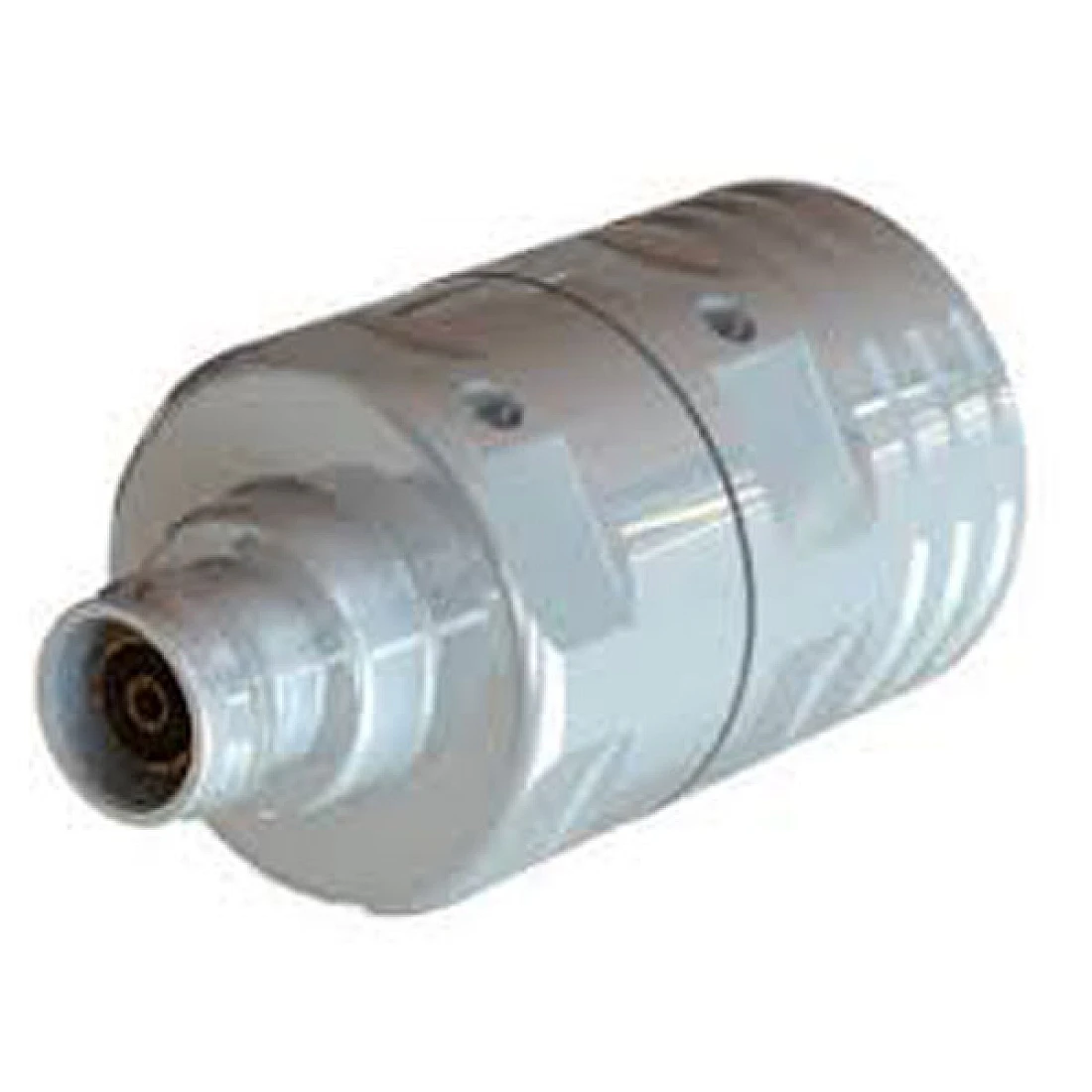

43F-RA114-P02 4.3-10 Female Connector for 1-1/4" RADIAFLEX® cable

43F-RA114-P02  4.3-10 Female Connector for 1-1/4" RADIAFLEX® cable DOWNLOAD DATA SHEET Technical Features GENERAL SPECIFICATIONS Transmission Line Type Coaxial Cable Cable Size 1-1/4" Cable Type Radiating Model Series all RLF, RLK and RAY114-50A-Series Connector Interface 4.3-10 Connector Type Straight Sealing Method Shrinking Sleeve Gender Female ELECTRICAL SPECIFICATIONS Nominal Impedance Ohm 50 3rd Order IM Product @ 2x20 Watts dBc -155 / -160 (typ.) Maximum Frequency GHz 3.7 VSWR, Return Loss VSWR (dB) 0.0-1.0 GHz: 1.03 (36.6) >1.0-2.7 GHz: 1.06 (30.7) >2.7-3.7 GHz: 1.08 (28.3) MECHANICAL SPECIFICATIONS Length mm (in) 91.2 (3.59) Outer Diameter mm (in) 48.8 (1.92) Weight kg (lb) 0.34 (0.749) Body Material Brass / Plating: Tri Metal Inner Contact Material Copper / Plating: Silver Inner Contact Attachment Spring Finger / Plating: Silver Outer Contact Attachment Spring Loop / Plating: Silver ACCESSORIES Wrench size front mm (in) SW 46 (1.81) Wrench size rear mm (in) SW 46 (1.81) Poly Hook Spanner mm (in) PHS60-90-5 Ø 60-90 (2.4-3.4) Trimming Tool TRIM-SET-R114-P02 TESTING AND ENVIRONMENTAL Waterproof Level IP68 Installation Temperature °C(°F) -25 to 60 (-13 to 140) Storage Temperature °C (°F) -70 to 85 (-94 to 185) Operation Temperature °C(°F) -40 to 85 (-40 to 185)

At Connectors Cables Specialists (CCS) Ltd, we supply a wide range of high-quality connectors, cables, cable assemblies and radio frequency components. Established in 1983 and based in Harlow, Essex, we support customers across telecommunications, broadcasting, electronics, industrial engineering, networking, security and amateur radio applications.

We provide an extensive selection of coaxial connectors, including BNC, TNC, SMA, SMB, SMC, N Type, UHF, F Type, MCX and MMCX options. Our product range also includes RF adaptors, attenuators, lightning protection equipment, grounding kits, coaxial cables, fibre optic products, industrial terminals, mains leads, plugs, jacks and network infrastructure products.

Alongside our standard product range, we offer a bespoke cable assembly service. We work closely with our customers to manufacture tailor-made assemblies that meet specific electrical, mechanical and environmental requirements. We can also produce standard coaxial cable assemblies with short lead times, helping customers receive reliable components without unnecessary delays.

We supply products from a number of established manufacturers and specialist brands, including CommScope, Binder, Telegärtner, Radiall, Rosenberger, Times Microwave Systems, Huber+Suhner and IMS Connector Systems. We also provide crimping tools, cable cutters, stripping equipment, testing products and installation accessories.

With decades of industry experience, we are committed to providing dependable customer service, practical technical knowledge and flexible connectivity solutions. Whether customers require individual components or complete cable assemblies, we aim to help them find the right products for demanding commercial, technical and industrial applications.

For more information on 43F-RA114-P02 4.3-10 Female Connector for 1-1/4" RADIAFLEX® cable talk to Connectors Cables Specialists (CCS) Ltd
