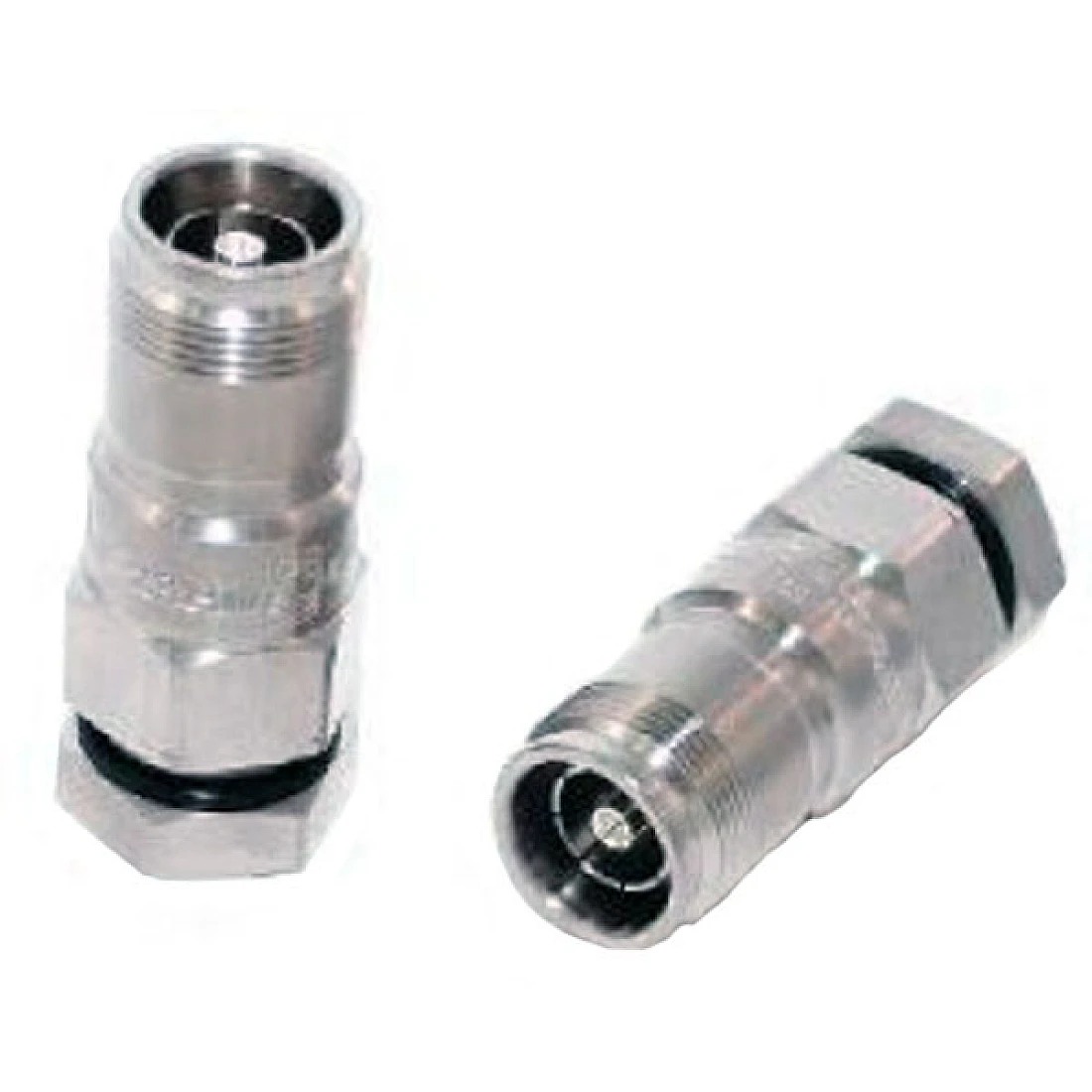

43F-LCF12-D01  4.3-10 Female Straight Connector for 1/2" Coaxial Cable, OMNI FIT Premium, Polymer claw and compression sealing
43F-LCF12-D01 4.3-10 Female Straight Connector for 1/2" Coaxial Cable, OMNI FIT Premium, Polymer claw and compression sealingDOWNLOAD DATA SHEETTechnical FeaturesGENERAL SPECIFICATIONSTransmission Line Type Coaxial CableCable Size 1/2"Cable Type Foam DielectricModel Series LCF12-50 Series, ICA12-50 Series, RCF12-50 SeriesConnector Interface 4.3-10Connector Type OMNI FIT?PREMIUM StraightSealing Method Polymer claw + 360° CompressionGender FemaleELECTRICAL SPECIFICATIONSNominal Impedance Ohm 503rd Order IM Product @ 2x20 Watts dBc -163 ; typical -167Maximum Frequency GHz 6.0VSWR, Return Loss VSWR (dB) 0 < f 1.0 GHz: 1.02 (40.1)1.0 < f 2.7 GHz: 1.03 (36.6)2.7 < f 3.7 GHz: 1.06 (30.7)3.7 < f 5.0 GHz: 1.08 (28.3)5.0 < f 6.0 GHz: 1.25 (19.1)MECHANICAL SPECIFICATIONSPlating Outer/Inner NiTin/SilverInner Contact Attachment BasketOuter Contact Attachment 360° clampingACCESSORIESWrench size front mm (in) 22 (7/8)Wrench size rear mm (in) 22 (7/8)Trimming Tool TRIM-SET-L12-D01, TRIM-LCF12-D01-ATESTING AND ENVIRONMENTALWaterproof Level IP68

For more information on 43F-LCF12-D01 4.3-10 Female Straight Connector for 1/2" Coaxial Cable, OMNI FIT Premium, Polymer claw and compression sealing talk to Connectors Cables Specialists (CCS) Ltd
