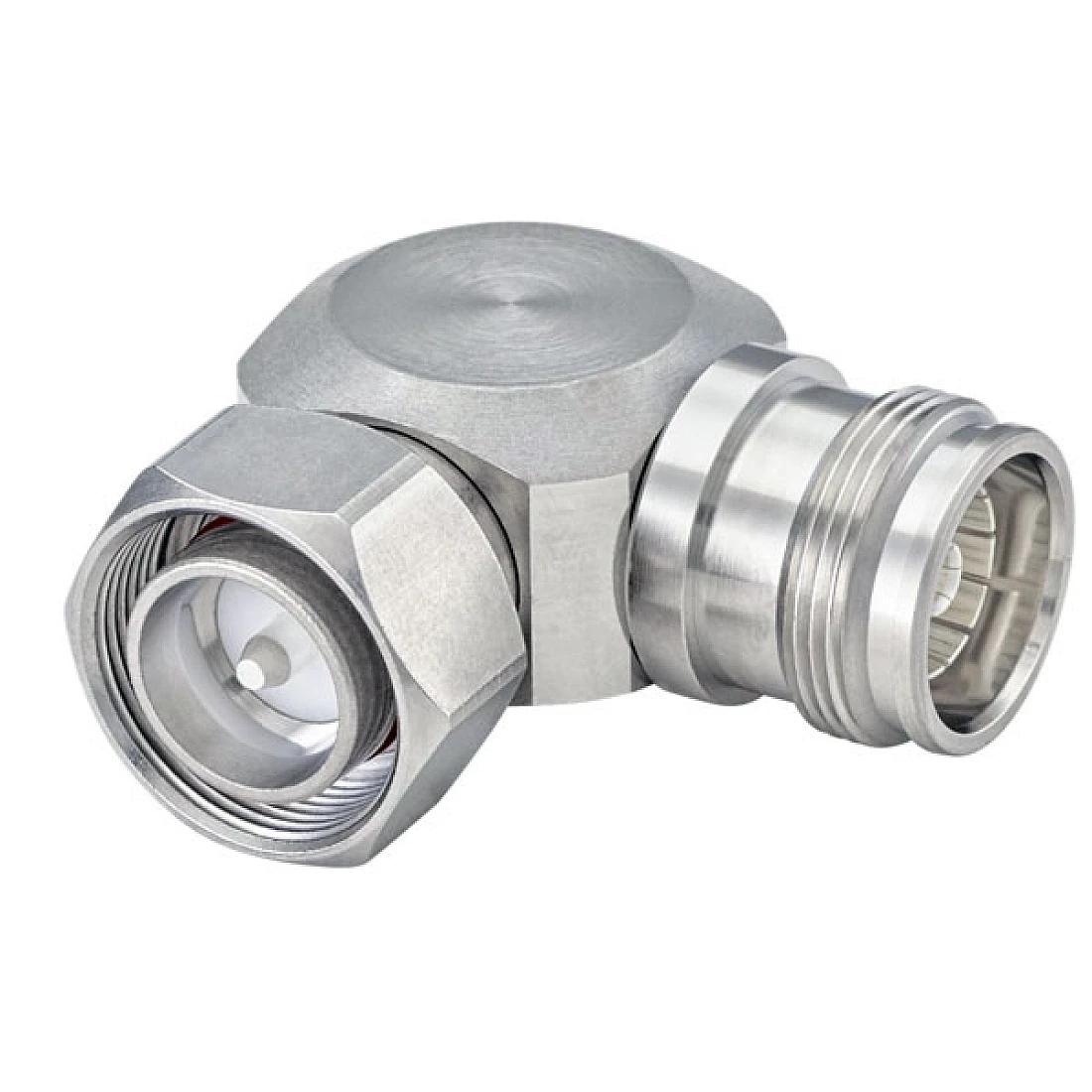

4.3-10 PLUG TO JACK ELBOW ADAPTOR

4.3-10 PLUG TO JACK ELBOW ADAPTOR DOWNLOAD DATASHEET Documents N/A Material and plating Connector parts Material Plating Center contact jack side CuBe Silver, 3-6 µm Center contact plug side Brass Silver, 3-6 µm Outer contact jack side Brass Silver, 3-6 µm Outer contact plug side Brass Flash white bronze over silver(e.g. Optargen®) Body Brass Flash white bronze over silver(e.g. Optargen®) Dielectric PTFE Gasket Silicone Technical Data Sheet 4.3-10 Adaptor Right Angle Plug type 1 – Jack 64S201-K00B1 Electrical data Impedance 50  Frequency DC to 12 GHz Return loss  36 dB @ DC to 4 GHz  32 dB @ 4 GHz to 6 GHz Insertion loss  0.03 x f [GHz] dB Insulation resistance  5 G Center contact resistance  1.0 m Outer contact resistance  1.0 m Test voltage 2500 V rms Working voltage 500 V rms RF-leakage  110 dB @ DC to 6 GHz for tool tightened plugs  90 dB @ DC to 3 GHz for tool-less plugs  70 dB @ DC 3 to 6 GHz for tool-less plugs Power handling (at 90 °C, altitude 3000m) 500 W @ 2.0 GHz Intermodulation (3rd order)  160 dBc (2 x 46 dBm) @ 0.4 – 4.0 GHz  166 dBc (2 x 43 dBm) @ 0.4 – 4.0 GHz -RL value only valid for the interfaceMechanical data Mating cycles  100 Center contact captivation: axial > 30 N Center contact retention force 1.5 - 20 N Outer contact retention force 4 - 35 N Engagement force typ. 100 N Disengagement force typ. 80 N Recommended torque 5 Nm Environmental data Temperature range -55 °C to +90 °C operating temperature Thermal shock IEC 61169-1, 9.4.4 Corrosion resistance ISO 21207 method B Vibration IEC 61169-1 9.3.3 and IEC 60068-2-64 Shock IEC 61169-1 9.3.14 Degree of protection (mated pair) IEC 60529, IP68 1h / 25m RoHS compliant Tooling N/A Suitable cables N/A Weight Weight 131.65 g/pce
