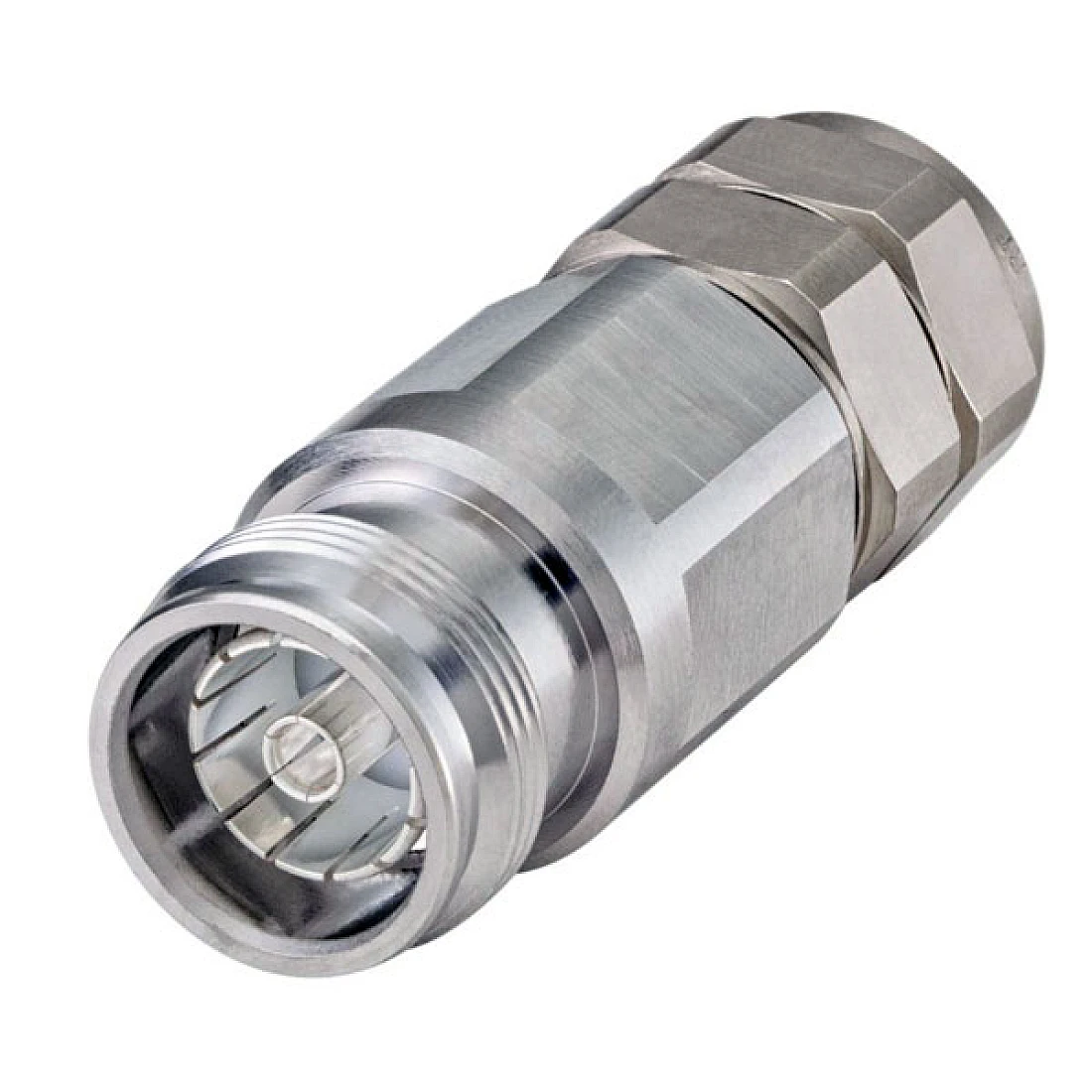

4.3-10 MALE ELBOW CONNECTOR FOR 1/2"R CABLE

4.3-10 MALE ELBOW CONNECTOR FOR 1/2"R CABLE DOWNLOAD DATASHEET All dimensions are in mm; tolerances according to ISO 2768 m-H Interface According to IEC 61169-54 Documents Assembly instruction 1C7-C03 Material and plating Connector parts Material Plating Center contact Brass Silver, 3-6 µm Outer contact Brass White bronze(e.g. Optalloy®) Body Brass White bronze(e.g. Optalloy®) Dielectric PTFE Gasket Silicone Technical Data Sheet 4.3-10 Right Angle Plug 64S2C7-C03N1 Electrical data Impedance 50  Frequency DC to 12 GHz Return loss  36 dB @ DC to 2.7 GHz  30 dB @ 2.7 GHz to 6 GHz Insertion loss  0.05 x f [GHz] dB Insulation resistance  5 G Center contact resistance  1.0 m Outer contact resistance  1.0 m Test voltage 2500 V rms Working voltage 500 V rms RF-leakage  110 dB @ DC to 6 GHz Power handling (at 90 °C, altitude 3000m) 500 W @ 2.0 GHz Intermodulation (3rd order)  160 dBc (2 x 46 dBm) @ 0.4 – 4.0 GHz  166 dBc (2 x 43 dBm) @ 0.4 – 4.0 GHz - Limitations are possible due to the used cable type – Mechanical data Mating cycles  100 Center contact captivation: axial > 30 N  radial > 5 Ncm Center contact retention force 1.5 - 20 N Outer contact retention force 4 - 35 N Recommended torque 5 Nm Environmental data Temperature range -55 °C to +90 °C operating temperature Thermal shock IEC 61169-1 9.4.4 Corrosion resistance ISO 21207 method B Vibration IEC 61169-1 9.3.3 and IEC 60068-2-64 Shock IEC 61169-1 9.3.14 Degree of protection (mated pair) IEC 60529, IP68 1h / 25m RoHS compliant Tooling N/A Suitable cables Flexline 1/2"R and similar Weight Weight 121.7 g/pce
