4.3-10 FEMALE CONNECTOR FOR 1/2"R CABLE

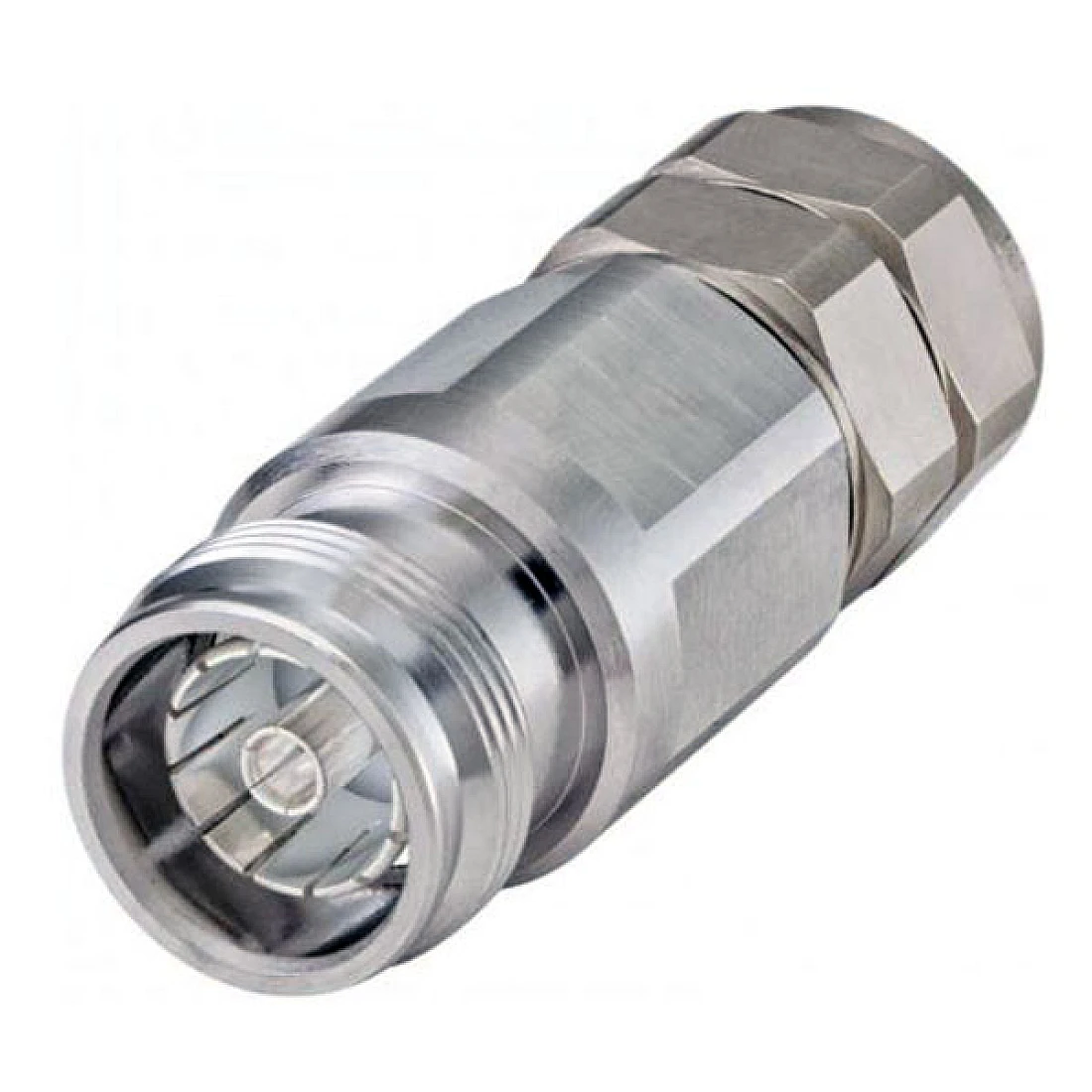

4.3-10 FEMALE CONNECTOR FOR 1/2"R CABLE DOWNLOAD DATASHEET Interface According to IEC 61169-54 All dimensions are in mm; tolerances according to ISO 2768 m-H Interface According to IEC 61169-54 Documents Assembly instruction 1C7-C03 Material and Plating Connector parts Material Plating Center contact CuBe Silver, 3-6 µm Outer contact Brass Flash white bronze over silver(e.g. Optargen®) Body Brass Flash white bronze over silver(e.g. Optargen®) Dielectric PTFE Gasket Silicone Technical Data Sheet 4.3-10 Straight Jack 64K1C7-C03B1 Electrical Data Impedance 50  Frequency DC to 12 GHz Return loss  35 dB @ DC to 3.0 GHz  30 dB @ 3.0 GHz to 4.0 GHz  22 dB @ 4.0 GHz to 6.0 GHz Insertion loss  0.05 x f [GHz] dB Insulation resistance  5 G Center contact resistance  1.0 m Outer contact resistance  1.0 m Test voltage 2500 V rms Working voltage 500 V rms RF-leakage  110 dB @ DC to 6 GHz  90 dB @ DC to 3 GHz for tool-less plugs  70 dB @ 3 to 6 GHz for tool-less plugs Power handling (at 90 °C, altitude 3000m) 500 W @ 2.0 GHz Intermodulation (3rd order)  160 dBc (2 x 46 dBm) @ 0.4 – 4.0 GHz  166 dBc (2 x 43 dBm) @ 0.4 – 4.0 GHz - Limitations are possible due to the used cable type – Mechanical Data Mating cycles  100 Recommended torque 5 Nm Environmental Data Temperature range -55 °C to +90 °C operating temperature Thermal shock IEC 61169-1 9.4.4 Corrosion resistance ISO 21207 method B Vibration IEC 61169-1 9.3.3 and IEC 60068-2-64 Shock IEC 61169-1 9.3.14 Degree of protection (mated pair) IEC 60529, IP68 1 h / 25 m RoHS compliant Tooling N/A Suitable Cables Flexline 1/2"R (recommended) and similar Weight 77 g/pc
