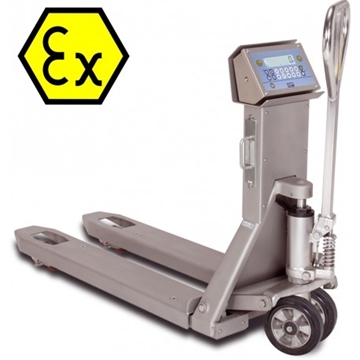

TPWX2GDI Series ATEX Hazardous Area Stainless Steel Pallet Truck Scale

Pallet truck scales, with built-in electronic weighing, for dangerous areas classified as hazardous (ZONES 1 and 21 & 2 and 22) in accordance with Ex II 2GD IIB T4 T197°C X. Structure completely in STAINLESS steel. Available also CE-M APPROVED. MAIN FEATURES Maximum lifting capacity: 2000 kg. Accuracy: +/- 0.1% of the maximum capacity in the versions for internal use. Accuracy: +/- 0.05% of the maximum capacity in the "M" approved versions. Triple ranging and increments. Goes up to 500Kg in 0.2Kg, then to 1000Kg in 0.5Kg, then up to 2000Kg in 1Kg increments Fork dimensions 1182 x 550 x 80 mm. Weighs about 135 kg. Bearing structure entirely in extra thick sheet steel. Lifting pump in STAINLESS steel. Steering wheels with rubber coating. Double loading rollers with a polyurethane coating. 4 stainless steel IP68 Atex certified shear-beam load cells. Weight indicator with waterproof IP68 STAINLESS STEEL case, easy to clean and resistant to harsh and corrosive environments; large high contrast 25mm LCD display, easily visible also in poor lighting conditions and waterproof membrane keypad, with 17 numerical/functional keys. Calibration and Set-Up parameters configurable from keyboard. Power supply through extractable battery, rechargeable in safe zone. 150-hour approximate operating time. Equipped with 230Vac 50 Hz battery charger to be recharged in a safe area. MAIN FUNCTIONS Zeroing, Tare High Resolution Weighing x 10 Net/Gross or lb/kg conversion Weighs accumulation Formulation Counting Hold AVAILABLE UPON PRICE ESTIMATE 680 mm fork width. Special fork length from 850 to 1500 mm. Special capacity e/o divisions. High resolution. For more information, please visit our website - www.totalweighing.co.uk or alternatively you can call us on – 01327 368020

For more information on TPWX2GDI Series ATEX Hazardous Area Stainless Steel Pallet Truck Scale talk to Total Weighing Solutions Ltd
