XCalibur5340

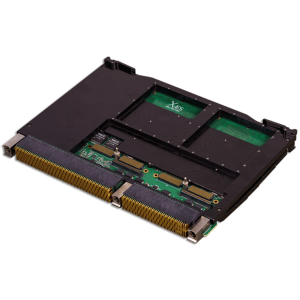

Intel® Core™ Ultra (Series 3) Processor-Based 6U VPX Module with 64 GB of LPDDR5 and Microchip PolarFire™ SoC FPGA   The XCalibur5340 from Extreme Engineering Solutions (X-ES) is a secure, high-performance 6U VPX single board computer based on the Intel® Core™ Ultra processor (Series 3) (formerly Panther Lake) and aligned to the Sensor Open System Architecture (SOSA) Payload profile (SLT6-PAY-4F1Q1H4U1T1S1S1TU2U2T1H-10.6.3-0). Ideal for ruggedized systems requiring high-bandwidth processing and low power consumption, the XCalibur5340 delivers superior performance and efficiency for today’s network information processing and high performance embedded computing applications.   The XCalibur5340 integrates SecureCOTS™ technology with a Microchip PolarFire™ System-on-Chip (SoC) FPGA for hosting custom functions to protect data from being modified or observed and provides an ideal solution when stringent security capabilities are required.   The XCalibur5340 supports up to 64 GB of LPDDR5 SDRAM with in-band ECC in eight channels and up to 512 GB of onboard NVMe storage. The XCalibur5340 also provides fast and efficient I/O, including 100GBASE-KR4, 25GBASE-KR, and 10/100/1000BASE-T Ethernet, USB 2.0, PCI Express, and RS-232 or RS-422/485 serial ports through the backplane connectors.   Wind River VxWorks, X-ES Enterprise Linux (XEL), and Linux Yocto Board Support Packages (BSPs) are available.

For more information on XCalibur5340 talk to Sarsen Technology Ltd
