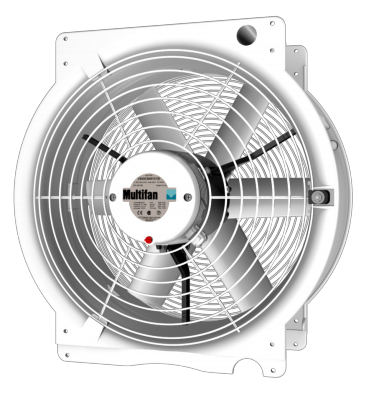

Vostermans Recirculation Fan. 50 Ø
Product Code: 23040050
Advantages.
Suitable for series ventilation systems, parallel ventilation and recirculation systems.
Excellently controllable (transformer/electronic) and energy-saving.
Built-in thermal protection (for single phase)
Easy to mount/remove wire guards.
Easy to maintain motor/impeller construction.
3 year limited motor warranty.
Options.
50 Hz motors.
Three phase motors suitable for frequency control.
16 cable and plug.
Features.
Optimal air distribution by inverse air stream impeller -> motor.
Optimal air distribution by a large aerodynamic inlet radius.
Compact aerodynamic housing.
Class-F motor insulation (-13°F to 104°F)
Housing suitable for suspension with profiles or chains.
Double wire guard in accordance with CE-standards.
Complete white execution.
IP55 dirt/moisture protection.
UL recognized.
Features:
Aerodynamic inlet radius for optimized air distribution.
High insulation class F/IP55.
Built-in thermal protection for single phase.
Housing suitable for suspension with profiles or chains.
Wire guards in accordance with CE-standards.
Serial or parallel ventilation systems.
Reflecting white color for usage in greenhouses.
Compact design for less shadow.
Options:
Three phase motor suitable for frequency control.
Cable + Plug (5 meters) for 230 V.
Built-in thermal protection for three phase.
Nozzle system set for 50cm Recirculation fan.
8 Nozzles with hoses.
Wire guard.
Easy to install.
Requested 4 bar water pressure.
POWER SUPPLY.
Single phase.
3-phase.
230 V.
230 V.
230 V.
230 V/ 400 V.
230 V/ 400 V.
230 V/ 400 V.
50 Hz.
50 Hz.
50 Hz.
50 Hz.
50 Hz.
50 Hz.
(mm)
420.
520.
520.
420.
520.
520.
RPM.
1400.
935.
1380.
1395.
935.
1400.
TYPE.
CIR 4E40.
CIR 6E50.
CIR 4E50.
CIR 4D40.
CIR 6D50.
CIR 4D50.
POWER (W)
240.
220.
390.
230.
210.
410.
RUNNING CURRENT.
1,3.
1,1.
1,8.
1,1/0,6.
0,9/0,6.
1,80/1,1.
m³/h @ 0 Pa.
5350.
5300.
6600.
8950.
6600.
9200.
dB(A) @ 7m.
56.
53.
55.
56.
53.
55.
THROW (0,5m/s)
51.
53.
55.
56.
53.
55.
Key features:
- Air Flow: 5,350 - 9,200m³/h.
- Power: 3-phase 400V.
- Speed: 1400 rpm
Additional information:
- Brand: Multifan
- Warranty: Options 50 Hz motors Three phase motors suitable for frequency control 16 cable and plug Features Optimal air distribution by inverse air stream impeller -> motor Optimal air distribution by a large aerodynamic inlet radius Compact aerodynamic housing Class-F motor insulation (-13°F to 104°F) Housing suitable for suspension with profiles or chains Double wire guard in accordance with CE-standards Complete white execution IP55 dirt/moisture protection UL recognized Features: Aerodynamic inlet radius for optimized air distribution High insulation class F/IP55 Built-in thermal protection for single phase Housing suitable for suspension with profiles or chains Wire guards in accordance with CE-standards Serial or parallel ventilation systems Reflecting white color for usage in greenhouses Compact design for less shadow Options: Three phase motor suitable for frequency control Cable + Plug (5 meters) for 230 V Built-in thermal protection for three phase Nozzle system set for 50cm Recirculation fan 8 Nozzles with hoses Wire guard Easy to install Requested 4 bar water pressure POWER SUPPLY Single phase 3-phase 230 V 230 V 230 V 230 V/ 400 V 230 V/ 400 V 230 V/ 400 V 50 Hz 50 Hz 50 Hz 50 Hz 50 Hz 50 Hz (mm) 420 520 520 420 520 520 RPM 1400 935 1380 1395 935 1400 TYPE CIR 4E40 CIR 6E50 CIR 4E50 CIR 4D40 CIR 6D50 CIR 4D50 POWER (W) 240 220 390 230 210 410 RUNNING CURRENT 1,3 1,1 1,8 1,1/0,6 0,9/0,6 1,80/1,1 m³/h @ 0 Pa 5350 5300 6600 8950 6600 9200 dB(A) @ 7m 56 53 55 56 53 55 THROW (0,5m/s) 51 53 55 56 53 55 Additional Details Additional Details Delivery Dependent on stock availability. Check with us before ordering Brand Multifan Warranty 3 years manufacturer's warranty
- Delivery: Dependent on stock availability. Check with us before ordering
For more information on Vostermans Recirculation Fan. 50 Ø talk to Puravent
