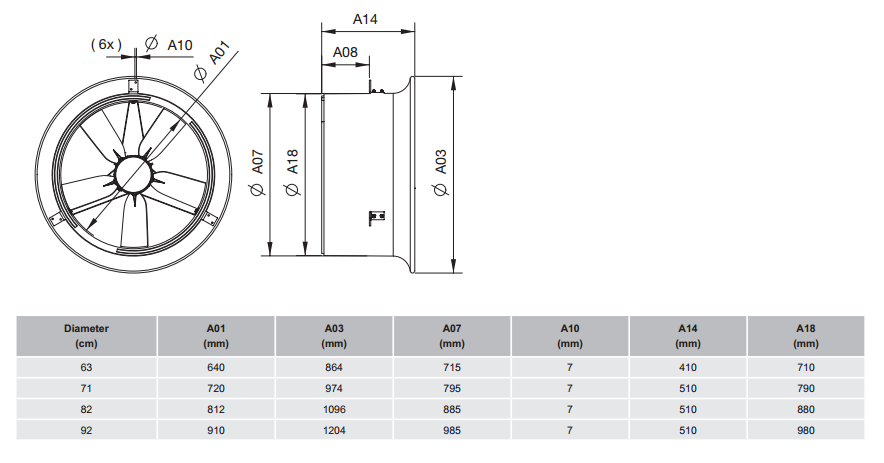

Vostermans Multifan High Pressure Fan 92cm Ø

Why choose this fan?/strong>.

• Designed to perform in harsh environments:

- Wash-down duty motor/ Protected from limited dust ingress and water jets from any direction.

- IP55 – insulation class F.

- Excellent corrosion resistance due to material choice.

• Increased efficiency in energy:

- Minimal IE2 frequency controllable motor for energy efficient fan speed control and reduction of energy consumption.

- ECplus option: with intelligent dedicated fan speed control, including preprogrammed settings.

• Flexible mounting:

- Can be mounted both horizontally as vertically.

• 3-year warranty for Multifan motors.

Applications:

• Central Exhaust systems and/or air washers.

• (Bio-) Filters.

• Heat exchange system.

• Manure drying system.

• Crop drying systems (potatoes, onions)

• Wood drying systems.

Important features:

• Available range: 63/71/82/92 cm.

• Motor performance: 1.5 to 4 kW.

• Pressure range: to 450 Pa.

• Motor: minimal IE2 Motor Efficiency + Frequency controllable.

• Fan: ERP 2015 / ERP 2020.

Diameter (CM)

92.

92.

92.

92.

RPM.

965.

975.

970.

980.

Pin (W)

1550.

2000.

3000.

3800.

I1/I2 (A)

5.4/3.1.

7.5/4.3.

11.5/6.6.

14.5/8.3.

I1/I2 max (A)

6.4/3.7.

8.8/5.1.

13.5/7.7.

16.0/9.2.

Qv (m³/h)

0 Pa.

27100.

31200.

35200.

39200.

50 Pa.

25300.

29400.

33600.

37300.

100 Pa.

23200.

27400.

31700.

35500.

150 Pa.

20700.

24900.

29800.

33400.

200 Pa.

21200.

27400.

30600.

250 Pa.

27200.

W/1000 m³/h.

0 Pa.

57.2.

64.1.

85.2.

69.9.

SPL.

(dB(A))

79.4.

79.5.

77.6.

79.1.

Key features:

• Motor performance: 1.5 to 4 kW
• Pressure range: to 450 Pa
• Motor: minimal IE2 Motor Efficiency + Frequency controllable
• Fan: ERP 2015 / ERP 2020

Additional information:

• Brand: Multifan
• Warranty: for Multifan motors Applications: • Central Exhaust systems and/or air washers • (Bio-) Filters • Heat exchange system • Manure drying system • Crop drying systems (potatoes, onions) • Wood drying systems Important features: • Available range: 63/71/82/92 cm • Motor performance: 1.5 to 4 kW • Pressure range: to 450 Pa • Motor: minimal IE2 Motor Efficiency + Frequency controllable • Fan: ERP 2015 / ERP 2020 Diameter (CM) 92 92 92 92 RPM 965 975 970 980 Pin (W) 1550 2000 3000 3800 I1/I2 (A) 5.4/3.1 7.5/4.3 11.5/6.6 14.5/8.3 I1/I2 max (A) 6.4/3.7 8.8/5.1 13.5/7.7 16.0/9.2 Qv (m³/h) 0 Pa 27100 31200 35200 39200 50 Pa 25300 29400 33600 37300 100 Pa 23200 27400 31700 35500 150 Pa 20700 24900 29800 33400 200 Pa 21200 27400 30600 250 Pa 27200 W/1000 m³/h 0 Pa 57.2 64.1 85.2 69.9 SPL (dB(A)) 79.4 79.5 77.6 79.1 Additional Details Additional Details Delivery Dependent on stock availability. Check with us before ordering Brand Multifan Warranty 1 year manufacturer's warranty
• Delivery: Dependent on stock availability. Check with us before ordering

Download PDF
