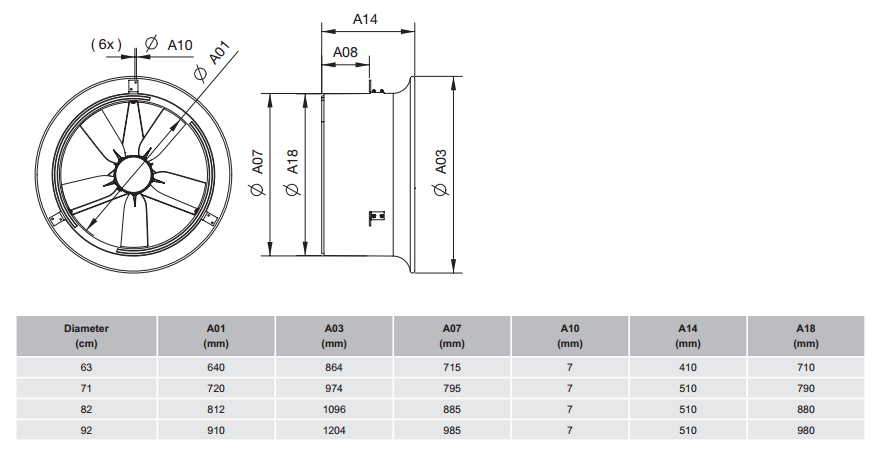

Vostermans Multifan High Pressure Fan 82cm Ø

Why choose this fan?/strong>.

• Designed to perform in harsh environments:

• Wash-down duty motor/ Protected from limited dust ingress and water jets from any direction.

• IP55 – insulation class F.

• Excellent corrosion resistance due to material choice.

• Increased efficiency in energy:

• Minimal IE2 frequency controllable motor for energy efficient fan speed control and reduction of energy consumption.

• ECplus option: with intelligent dedicated fan speed control, including preprogrammed settings.

• Flexible mounting:

• Can be mounted both horizontally as vertically.

• 3-year warranty for Multifan motors.

Applications:

• Central Exhaust systems and/or air washers.

• (Bio-) Filters.

• Heat exchange system.

• Manure drying system.

• Crop drying systems (potatoes, onions)

• Wood drying systems.

Important features:

• Available range: 63/71/82/92 cm.

• Motor performance: 1.5 to 4 kW.

• Pressure range: to 450 Pa.

• Motor: minimal IE2 Motor Efficiency + Frequency controllable.

• Fan: ERP 2015 / ERP 2020.

Diameter (CM)

82.

82.

82.

82.

82.

82.

82.

RPM.

950.

970.

965.

1465.

1465.

1470.

1470.

Pin (W)

1750.

2550.

3450.

2300.

2800.

3600.

2150.

I1/I2 (A)

5.7/3.3.

8.3/4.8.

11.5/6.6.

6.9/4.0.

9.0/5.2.

12.0/7.1.

6.7/3.9.

I1/I2 max (A)

6.6/3.8.

9.1/5.3.

11.5/6.8.

8.0/4.6.

11.0/6.4.

14.5/8.5.

8.0/4.6.

Qv (m3/h )

0 Pa.

23500.

28200.

31600.

29000.

25100.

30100.

25500.

50 Pa.

22200.

26700.

29900.

27200.

24200.

29200.

24400.

100 Pa.

20800.

25000.

27800.

25400.

23500.

28400.

23300.

150 Pa.

18800.

23200.

27800.

25400.

23500.

28400.

23300.

200 Pa.

18800.

23200.

25700.

23200.

22700.

27500.

22000.

250 Pa.

15700.

22600.

20200.

20500.

21900.

26600.

20400.

300 Pa.

19700.

24200.

163000.

350 Pa.

18400.

22900.

400 Pa.

17100.

21200.

W/1000 m3/h.

0 Pa.

111.6.

119.6.

84.3.

SPL.

(dB(A))

87.6.

87.

Key features:

• Motor performance: 1.5 to 4 kW
• Pressure range: to 450 Pa
• Motor: minimal IE2 Motor Efficiency + Frequency controllable
• Fan: ERP 2015 / ERP 2020

Additional information:

• Brand: Multifan
• Warranty: for Multifan motors Applications: • Central Exhaust systems and/or air washers • (Bio-) Filters • Heat exchange system • Manure drying system • Crop drying systems (potatoes, onions) • Wood drying systems Important features: • Available range: 63/71/82/92 cm • Motor performance: 1.5 to 4 kW • Pressure range: to 450 Pa • Motor: minimal IE2 Motor Efficiency + Frequency controllable • Fan: ERP 2015 / ERP 2020 Diameter (CM) 82 82 82 82 82 82 82 RPM 950 970 965 1465 1465 1470 1470 Pin (W) 1750 2550 3450 2300 2800 3600 2150 I1/I2 (A) 5.7/3.3 8.3/4.8 11.5/6.6 6.9/4.0 9.0/5.2 12.0/7.1 6.7/3.9 I1/I2 max (A) 6.6/3.8 9.1/5.3 11.5/6.8 8.0/4.6 11.0/6.4 14.5/8.5 8.0/4.6 Qv (m3/h ) 0 Pa 23500 28200 31600 29000 25100 30100 25500 50 Pa 22200 26700 29900 27200 24200 29200 24400 100 Pa 20800 25000 27800 25400 23500 28400 23300 150 Pa 18800 23200 27800 25400 23500 28400 23300 200 Pa 18800 23200 25700 23200 22700 27500 22000 250 Pa 15700 22600 20200 20500 21900 26600 20400 300 Pa 19700 24200 163000 350 Pa 18400 22900 400 Pa 17100 21200 W/1000 m3/h 0 Pa 111.6 119.6 84.3 SPL (dB(A)) 87.6 87 Additional Details Additional Details Delivery Dependent on stock availability. Check with us before ordering Brand Multifan Warranty 1 year manufacturer's warranty
• Delivery: Dependent on stock availability. Check with us before ordering

Download PDF
