Vostermans Multifan High Pressure Fan 71cm Ø

Why choose this fan?/strong>.

• Designed to perform in harsh environments:

• Wash-down duty motor/ Protected from limited dust ingress and water jets from any direction.

• IP55 – insulation class F.

• Excellent corrosion resistance due to material choice.

• Increased efficiency in energy:

• Minimal IE2 frequency controllable motor for energy efficient fan speed control and reduction of energy consumption.

• ECplus option: with intelligent dedicated fan speed control, including preprogrammed settings.

• Flexible mounting:

• Can be mounted both horizontally as vertically.

• 3-year warranty for Multifan motors.

Applications:

• Central Exhaust systems and/or air washers.

• (Bio-) Filters.

• Heat exchange system.

• Manure drying system.

• Crop drying systems (potatoes, onions)

• Wood drying systems.

Important features:

• Available range: 63/71/82/92 cm.

• Motor performance: 1.5 to 4 kW.

• Pressure range: to 450 Pa.

• Motor: minimal IE2 Motor Efficiency + Frequency controllable.

• Fan: ERP 2015 / ERP 2020.

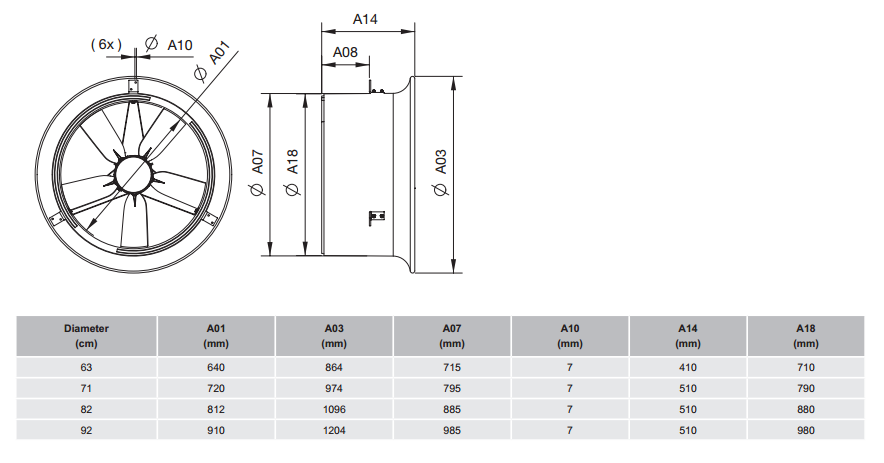

Diameter (CM)

RPM.

Pin (W)

I1/I2 (A)

I1/I2 max (A)

71.

960.

1650.

5.6/3.3.

5.8/3.4.

71.

1450.

1750.

5.6/3.3.

6.4/3.7.

Qv (m³/h)

0 Pa.

50 Pa.

100 Pa.

150 Pa.

200 Pa.

250 Pa.

22200.

20200.

18100.

14100.

22100.

20700.

19300.

17800.

160000.

13100.

Key features:

• Motor performance: 1.5 to 4 kW
• Pressure range: to 450 Pa
• Motor: minimal IE2 Motor Efficiency + Frequency controllable
• Fan: ERP 2015 / ERP 2020

Additional information:

• Brand: Multifan
• Warranty: for Multifan motors Applications: • Central Exhaust systems and/or air washers • (Bio-) Filters • Heat exchange system • Manure drying system • Crop drying systems (potatoes, onions) • Wood drying systems Important features: • Available range: 63/71/82/92 cm • Motor performance: 1.5 to 4 kW • Pressure range: to 450 Pa • Motor: minimal IE2 Motor Efficiency + Frequency controllable • Fan: ERP 2015 / ERP 2020 Diameter (CM) RPM Pin (W) I1/I2 (A) I1/I2 max (A) 71 960 1650 5.6/3.3 5.8/3.4 71 1450 1750 5.6/3.3 6.4/3.7 Qv (m³/h) 0 Pa 50 Pa 100 Pa 150 Pa 200 Pa 250 Pa 22200 20200 18100 14100 22100 20700 19300 17800 160000 13100 Additional Details Additional Details Delivery Dependent on stock availability. Check with us before ordering Brand Multifan Warranty 1 year manufacturer's warranty
• Delivery: Dependent on stock availability. Check with us before ordering

Download PDF

For more information on Vostermans Multifan High Pressure Fan 71cm Ø talk to Puravent
