Vostermans Multifan High Pressure Fan 63cm Ø

Why choose this fan?/strong>.

• Designed to perform in harsh environments:

- Wash-down duty motor/ Protected from limited dust ingress and water jets from any direction.

- IP55 – insulation class F.

- Excellent corrosion resistance due to material choice.

• Increased efficiency in energy:

- Minimal IE2 frequency controllable motor for energy efficient fan speed control and reduction of energy consumption.

- ECplus option: with intelligent dedicated fan speed control, including preprogrammed settings.

• Flexible mounting:

- Can be mounted both horizontally as vertically.

• 3-year warranty for Multifan motors.

Applications:

• Central Exhaust systems and/or air washers.

• (Bio-) Filters.

• Heat exchange system.

• Manure drying system.

• Crop drying systems (potatoes, onions)

• Wood drying systems.

Important features:

• Available range: 63/71/82/92 cm.

• Motor performance: 1.5 to 4 kW.

• Pressure range: to 450 Pa.

• Motor: minimal IE2 Motor Efficiency + Frequency controllable.

• Fan: ERP 2015 / ERP 2020.

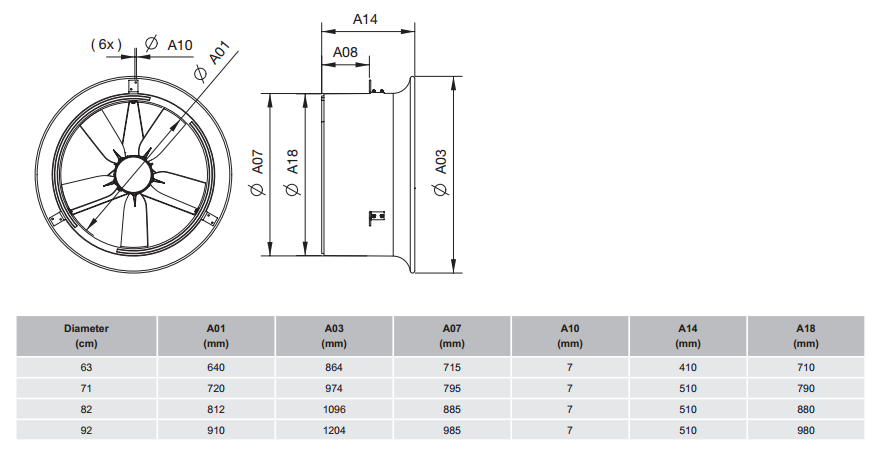

Diameter (CM)

63.

63.

RPM.

9750.

1450.

Pin (W)

1000.

1650.

I1/I2 (A)

4.9/2.8.

5.6/3.2.

I1/I2 max (A)

5.0/2.9.

6.4/3.7.

Qv (m³/h)

0 Pa.

15600.

19100.

50 Pa.

14400.

18200.

100 Pa.

12600.

17100.

150 Pa.

0.

16100.

200 Pa.

14700.

W/1000 m³/h.

0 Pa.

64.1.

86.4.

SPL.

(dB(A))

73.

82.

Key features:

• Motor performance: 1.5 to 4 kW
• Pressure range: to 450 Pa
• Motor: minimal IE2 Motor Efficiency + Frequency controllable
• Fan: ERP 2015 / ERP 2020

Additional information:

• Brand: Multifan
• Warranty: for Multifan motors Applications: • Central Exhaust systems and/or air washers • (Bio-) Filters • Heat exchange system • Manure drying system • Crop drying systems (potatoes, onions) • Wood drying systems Important features: • Available range: 63/71/82/92 cm • Motor performance: 1.5 to 4 kW • Pressure range: to 450 Pa • Motor: minimal IE2 Motor Efficiency + Frequency controllable • Fan: ERP 2015 / ERP 2020 Diameter (CM) 63 63 RPM 9750 1450 Pin (W) 1000 1650 I1/I2 (A) 4.9/2.8 5.6/3.2 I1/I2 max (A) 5.0/2.9 6.4/3.7 Qv (m³/h) 0 Pa 15600 19100 50 Pa 14400 18200 100 Pa 12600 17100 150 Pa 0 16100 200 Pa 14700 W/1000 m³/h 0 Pa 64.1 86.4 SPL (dB(A)) 73 82 Additional Details Additional Details Delivery Dependent on stock availability. Check with us before ordering Brand Multifan Warranty 1 year manufacturer's warranty
• Delivery: Dependent on stock availability. Check with us before ordering

Download PDF

For more information on Vostermans Multifan High Pressure Fan 63cm Ø talk to Puravent
