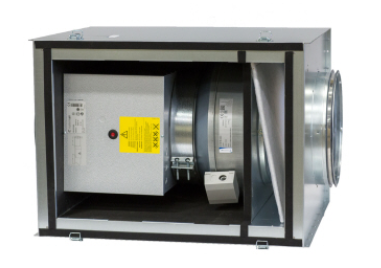

TLP 315/6,0 Air Handling Units

A compact unit consisting of a fan, heater andFilter in a galvanised sheet steel casing insulated inside with 50 mm of mineral wool. Rubber-sealed sleeve couplings. Neoprene sealing strips and toggle locks. Note that the fan must always be connected to 230 V. Fan run-on is not normally required. (Lowest air velocity 1.5 m/s). Max. output air temperature: 40degC. The fan may be adjusted by either a transformer or a thyristor.

The heating element is most effectively controlled by a power regulator, pulser and duct sensor.

TheFilter should be checked regularly and replaced at least twice a year.

TLP 315/6,0 Air handling Units. 173 - 860 m³/h.

Additional information:

• Brand: Systemair
• Warranty: 1 year manufacturer's warranty
• Delivery: This item is usually stocked overseas and takes about 2–3 weeks to deliver. If held in UK stock, available for delivery in 3–4 days. Enquire on 01609 243164

Download PDF

For more information on TLP 315/6,0 Air Handling Units talk to Puravent
