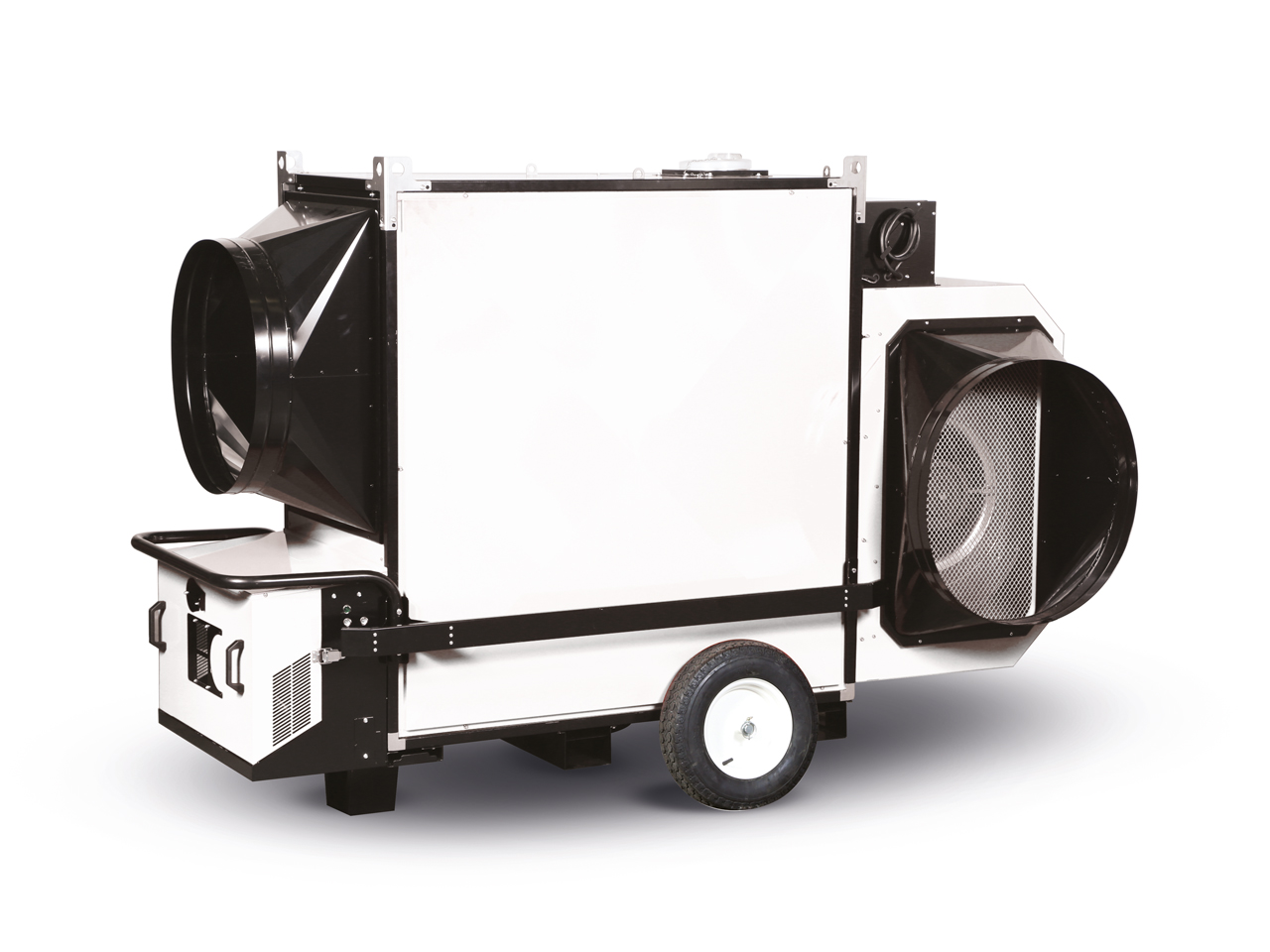

TITAN 145 M (monophase) Heavy Duty Mobile Space Heater with centrifugal fan

TITAN - INDIRECT COMBUSTION HEAVY DUTY MOBILE SPACE HEATERS WITH CENTRIFUGAL FAN.

• Burner cover: protects the burner against blows, dust, water, weather and collect diesel fuel/condensation recovery basin.

• Burner is supplied with snorkel jack to ensure clean air combustion through connection with outdoor air uptake duct.

• The new heat exchanger with the newly designed higher performance fans ensure heat efficiency of 96%.

• Better anchorage to the machine’s weight bearing structure through sturdy attachment rods which allow for movement on any floors.

• Bearing structure with removable panels for interior washing, also in hanging models.

• Panels with reinforcement cross pleats to ensure superior rigidity and strength.

• Exclusive use of metric screws and inserts for fastening, no self-tapping screws.

• Protection cap of combustion chamber exhaust in plastic material with retention chains guards.

Ventilator (IP 55):

- Very low noise fan (noise level ≤ 69db at 2 meters).

- High output, high performance fan guarantees increased air flow and static pressure.

- Uniform and long distance diffusion of warm air through channels or ducts.

- Fan anchorage on machine’s bearing structure through sturdy rods.

- Adjustable fresh air re-uptake shutter.

Rear electrical control panel (IP 65):

- Located at the top rear of the machine to avoid contact with dust, water, snow.

- Supplied with a sturdy metal cover to prevent damage and unauthorized access.

- Handy for storage of tools, papers, etc;.

Front electrical service panel (IP 65):

- Located at the front of the machine inside the burner cover lid.

- Prevents contact with dust, water, snow.

- Easier maintenance.

- Main components (fan, burner, thermostats, etc.) supplied with quick couplings for electrical connections.

Key features:

• Rated Heat Power: 144,72Kw
• Output Heat Power: 138,93Kw
• Single phase: 230V
• Airflow: 14,000m³/h
• Oil, LPG, or natural gas burner options

Additional information:

• Brand: Arcotherm
• Warranty: 1 year manufacturer's warranty
• Delivery: Normally 2 - 3 working days. Expect within 5 working days of order
