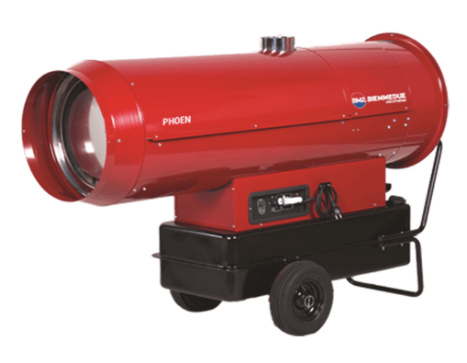

Phoen 110 Indirect Oil Fired Heater

With a 2 stage burner providing outputs of either 72kW (245,000 BTU/hr) on stage 1 & 106kW (363,000 BTU/hr) on stage 2.

The Phoen 110 is a hybrid of the EC and Jumbo, combining the ECs' aesthetics and fuel tank design with larger air movement and longer ducting capacity associated with the Jumbos. You can expect to have exhaust temperatures in the range of 280 - 320°C.

The Phoen 110's 135 litre fuel tank is sufficient to support 12 hours continuous running time and can also be converted to a single pipe system to facilitate connection to a bunded fuel tank or IBC (Intermediary Bulk Container)

Heater Dimensions: 1918mm x 731mm x 1220mm.

Packaged Heater Dimensions: 1870mm x 660mm x 1210mm.

Product Weight: 149kg.

Packaged Weight: 174kg.

Heating Capacity: 72 - 106kW.

Heat Efficiency: 90%.

Air Flow: 5300m³hr.

Air Temperature: 60 - 75°C.

Fuel Consumption: 3.33 - 9.278l/hr.

Tank Capacity: 135l.

Electrical Power: 1820W.

Runtime constant per tank of fuel: 12hrs.

Key features:

• Rated Heat Power: 106Kw. 230V
• Airflow: 5300m³/h
• Tank Capacity: 135L
• Fuel Consumption: 9,278L/h

Additional information:

• Brand: Arcotherm
• Warranty: 1 year manufacturer's warranty
• Delivery: Normally 2 - 3 working days. Expect within 5 working days of order
