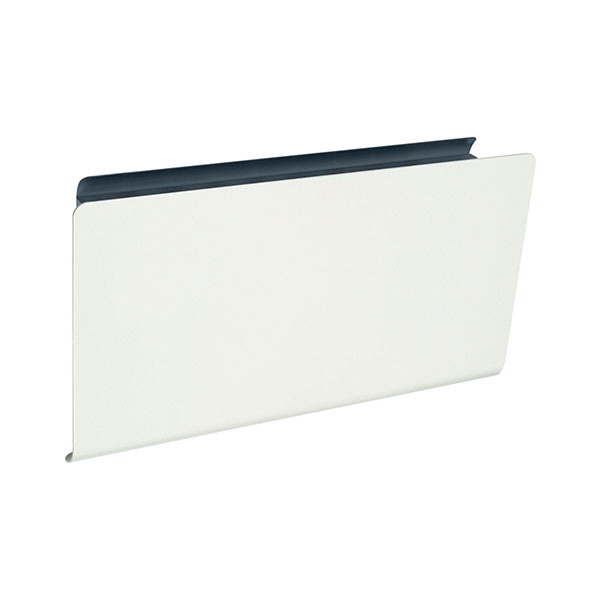

PFSE10 Fan Convector

Fan convector PF Smart.

Fan convector with smart functions for fast and efficient heating.

With its smart functions and streamlined design,the PF Smart fan convector is the perfect choice for fast and efficient heating. The PF Smart is suitable for most environments including offices and homes. It is ideal for installation in premises that are used rarely, such as weekend cottages and assembly halls where rapid heating is desirable. In addition, the PF Smart can be remotely controlled so that the premises is warm by the time you arrive. With a fan convector, energy consumption is lower than with a convector without a fan because the airflow balances out the temperature difference between the floor and ceiling. Its excellent drying properties are very useful in garages, cellars/basements and toilet and bathroom facilities.

During installation, a maximum surface temperature of 60 °C can be selected, which makes it particularly suitable for use in preschools, afterschool recreation centres and toilet and bathroom facilities. The PF Smart fan convector has an attractive, streamlined design with a white-lacquered aluminium front. The front can be easily removed and painted any colour you wish.

• The PF Smart fan convector is available in the following versions:

- PFSE is equipped with a 1.2 metre long cord with plug for connection to an earthed power socket (230V~). Can be used as a portable unit – the floor stand is available as an accessory.

- PFSD is intended for fixed installation (400V2~).

• Low sound level.

• Digital display.

• Built-in digital thermostat +5 – +30 °C.

• Adjustable fan mode.

• Functions for remote control, energy savings and comfort.

• Selectable maximum surface temperature 60 / 90 °C.

• White-lacquered aluminium front. Naturally oxidised aluminium exhaust grille. ABS plastic ends. Front colour: white, RAL 9016, NCS S 0500-N. Ends colour: grey, RAL 7046.

Title.

Value.

Colour.

RAL 9016, NCS S 0500-N.

Heat output [W].

1000.

Air flow step one.

60m³/h.

Air flow step two.

100m³/h.

Sound Level step one.

28 dBA.

Sound Level step two.

38.5 dBA.

Voltage [V].

230V~.

Amperage [A].

4.4.

Protection Class.

IP24.

Dimensions L x H D[mm].

660 x 325 x 105.

Weight [kg].

5.8.

Key features:

• Power: 1000W /230V
• Airflow: 60/100m³/h
• Dimensions: L660 x H325 x W105mm
• Weight: 5.8Kg
• IP Rating: 24
• Supplied with plug and 1.2m cord

Additional information:

• Brand: Systemair
• Warranty: 1 year manufacturer's warranty
• Delivery: This item is usually stocked overseas and takes about 2 weeks to deliver. If held in UK stock, available for delivery in 3–4 days. Enquire on 01609 243164

Download PDF

For more information on PFSE10 Fan Convector talk to Puravent
