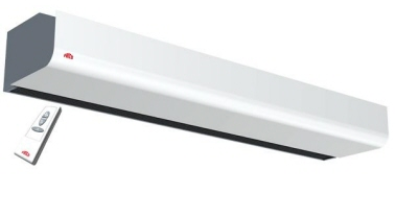

PA3215CW Air curtain.

PA3200C is a compact air curtain for commercial buildings and small industrial entrances. Its recommended installation height is 3,2 m.

The air curtain is available for horizontal installation with wall brackets included or can be supplemented with accessories for mounting from the ceiling. The front is easy to remove, which facilitates installation and allows easy maintenance.

The air curtain has a control panel discretely integrated in the gable end and can be controlled by a separate remote control.

A motor alarm board (PAMLK) is available as accessory which allows connection for a motor alarm signal.

It is also possible to add a door switch control (PA2DR), which include a door switch for door indication and a special remote control intended to activate auto mode in the unit.

Water heated units must be supplemented with a valve system. The valve system controls the water flow and activates maximum heat only when needed. Other smart accessories for water heated units are also available.

Frico air curtains are developed and manufactured in Sweden. The air curtains are tested in one of the most modern and advanced air and sound laboratories in Europe which means that we can guarantee a high performance product.

The recommended installation height varies depending on the relevant premises.

Key features:

• Installation Height: 3.2m
• Length: 1578mm
• Heating output: 14kw
• Airflow: 2700m³/h

Additional information:

• Brand: Systemair
• Warranty: 1 year manufacturer's warranty
• Delivery: This item is usually stocked overseas and takes about 2–3 weeks to deliver. If held in UK stock, available for delivery in 3–4 days. Enquire on 01609 243164
