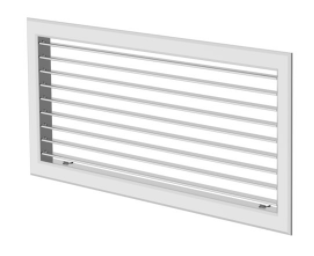

NOVA-A-2-2-200x150-R1-UR-H-AN

Description.

NOVA-A is a diffusion grille. The product is intended for air supply and air extract. The product is installed into rectangular ducts or into walls. The grille directs the air using its adjustable blades in a horizontal, as well as vertical orientation. For a balanced distribution of air through the entire grille it is recommended to use the R1-NOVA damper or a plenum box. The field of application is industrial and commercial premises with higher emphasis on appearance.

Highlights.

• Individually adjustable blades, single or double layer for well-adjusted air discharge pattern.

• Design with emphasized aesthetics.

• Lightweight construction.

• Air volume adjustment damper with large authority range available.

List of Accessories.

• ODEN: Plenum Box with Basic Air Adjustment for NOVA.

• R1-NOVA: Damper for NOVA.

• UR-NOVA: Mounting Frame for NOVA.

Design.

NOVA-A is manufactured from anodized aluminium profiles. The product consists of a frame and 1 or 2 layers of blades. The blades are oriented horizontally or vertically. The blades of the second layer are always perpendicularly oriented to the blades of the first layer. Axial pitch of the blades is 20 mm. The blades inclination determines the air flow discharge pattern. The product is provided in anodized surface finish or powder painted to RAL9003 (signal white) as standard. Other RAL colours are available upon request.

Additional information:

• Brand: Systemair
• Warranty: 1 year manufacturer's warranty
• Delivery: This item is usually stocked overseas and takes about 2–3 weeks to deliver. If held in UK stock, available for delivery in 3–4 days. Enquire on 01609 243164

For more information on NOVA-A-2-2-200x150-R1-UR-H-AN talk to Puravent
