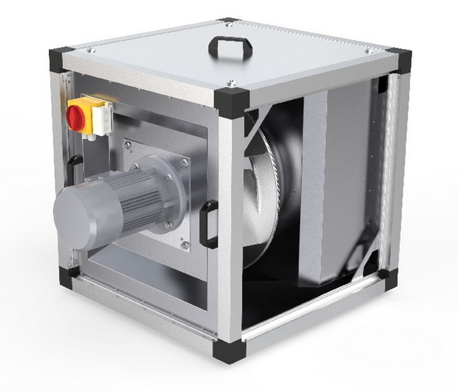

MUB/T-S 025 315D4 2,080m³/h, 400v Centrifugal box fan, 120 °C. continuous, insulated

All MUB/T-S fans have new optimized and high efficient HD impellers with backward curved blades, manufactured from aluminium. The fans are equipped with IEC standard motors outside the air stream. Optimum motor protection by cold conductors (PTC) to be connected to an external motor protection device. The casing consists of an aluminium frame with fibreglass reinforced plastic corners and double skin, galvanised steel panels with a 30 mm mineral wool insulation. With quick lock access door. The MUB/T-S bottom panel is a drain tray and incorporates a pre-mounted 1" drain plug. An additional pre-wired isolator switch is mounted on the casing.

Key features:

• Inline airflow direction
• Up to 120 deg C. medium temperature, continuous operation
• use, e.g. for kitchen exhaust air
• Pre-mounted isolator is standard
• Low sound level
• High efficient motors
• Integral cold conductor (PTC)
• Easy to maintain and reliable
• Motor outside the air stream

Additional information:

• Brand: Systemair
• Warranty: 1 year manufacturer's warranty
• Delivery: This item is usually stocked overseas and takes about 2 weeks to deliver. If held in UK stock, available for delivery in 3–4 days. Enquire on 01609 243164

Download PDF

For more information on MUB/T-S 025 315D4 2,080m³/h, 400v Centrifugal box fan, 120 °C. continuous, insulated talk to Puravent
