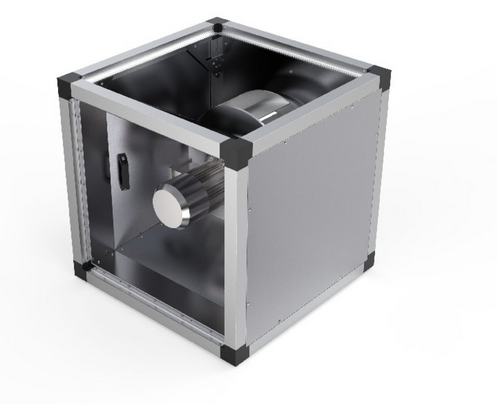

MUB/T 560D4 ECO 12,000m³/h, 400v Centrifugal box fan, 120°C. continuous, insulated

All MUB/T fans have impellers with backward curved blades, manufactured from aluminium, and IEC standard motors outside the air stream for all 400V three phase motors from 0.75 kW. The MUB/T fans are suitable for medium temperatures up to 120 deg C. continuously. Motor protection by cold conductors or thermal contact, to be connected to an external motor protection device.

The casing consists of an aluminium frame with fibreglass reinforced plastic corners and double skin, galvanised steel panels with a 30 mm mineral wool insulation. Panels are removable, allowing flexible ventilation solutions - the air direction can easily be changed. The MUB bottom panel is shaped as a condensate tray and incorporates a pre-mounted 1" drain plug.

SeveralFilter modules like f.e. activated carbon- or aluminumFilters are available, calculated individually on the working point.

Additional information:

• Brand: Systemair
• Warranty: 1 year manufacturer's warranty
• Delivery: This item is usually stocked overseas and takes about 2 weeks to deliver. If held in UK stock, available for delivery in 3–4 days. Enquire on 01609 243164

Download PDF

For more information on MUB/T 560D4 ECO 12,000m³/h, 400v Centrifugal box fan, 120°C. continuous, insulated talk to Puravent
