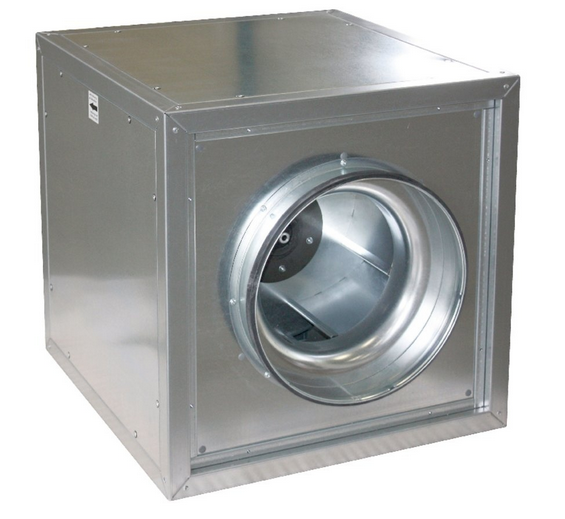

MUB/F 042 400D4-6 - 4,800m³/h centrifugal box fan, Smoke extract unit 400°C/2h, insulated

The smoke extract units MUB/F are used in case of fire to extract smoke gases and also during normal working conditions for standard temperature up to 55 deg C C continuously. The MUB/F is equipped with backward curved impellers, manufactured from galvanized steel. The casing consists of a frame, manufactured from profiled steel, 4 double skin panels from galvanized steel and 20 mm mineral wool insulation inside. The fan inlet side is equipped with an inlet cone and a circular connection spigot with rubber sealings. The fan outlet panel, which can easily be changed at site from straight through air direction to top or side outlet, is equipped with a circular connection spigot, same connection diameter as on the fan inlet. High temperature motors for temperature classification F400/120 min., in single and two speed versions.

Additional information:

• Brand: Systemair
• Warranty: 1 year manufacturer's warranty
• Delivery: This item is usually stocked overseas and takes about 2 weeks to deliver. If held in UK stock, available for delivery in 3–4 days. Enquire on 01609 243164

Download PDF

For more information on MUB/F 042 400D4-6 - 4,800m³/h centrifugal box fan, Smoke extract unit 400°C/2h, insulated talk to Puravent
