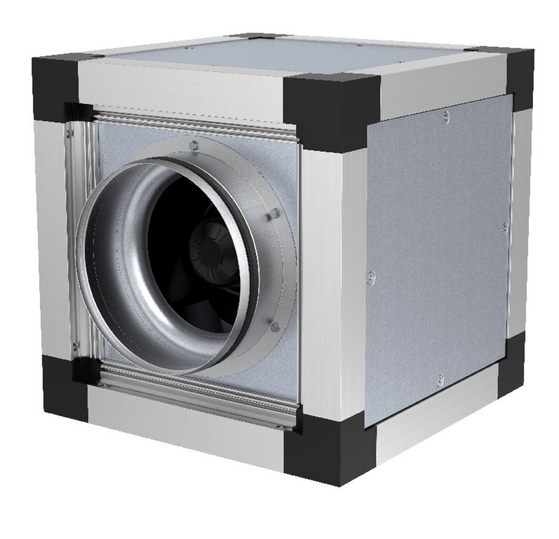

MUB 025 315EV sileo. 1,950m³/h, 230v Centrifugal box fan, insulated, flexible outlet

For speed controlling with a frequency converter a type with all pole sineFilter is needed!.

The three phase motors are D/Y connected for two speed operation. Motor protection is done by thermal contacts with manual reset in acc. with EN 60335-2-80. The casing consists of a corrosion-resistant aluminium frame with fibreglass reinforced plastic corners of PA6; highly.

shockresistant. The double skin panels are manufactured from galvanised steel with 30 mm mineral wool insulation. To avoid condensation the profile is provided with a separate chamber to fix screws. The Multibox fans are delivered for straight through airflow but can easily be.

rebuilt due to removable panels. This allows flexible ventilation solutions. The MUB can also be used as extract- or supply air unit in air handling units. Installation in any mounting position is possible.

MUB with additional modules Filters, heaters etc.) are available as air handling units "K025, K042 or K062" on request!

Speed-controllable.

Modular system.

Integral thermal contacts.

low sound level.

Flexible airflow direction due to removable panels.

Installation in any mounting position.

Maintenance-free and reliable.

Available with 90-degree r straight-through airflow. Specify when ordering.

Additional information:

• Brand: Systemair
• Warranty: 1 year manufacturer's warranty
• Delivery: This item is usually stocked overseas and takes about 2 weeks to deliver. If held in UK stock, available for delivery in 3–4 days. Enquire on 01609 243164

For more information on MUB 025 315EV sileo. 1,950m³/h, 230v Centrifugal box fan, insulated, flexible outlet talk to Puravent
