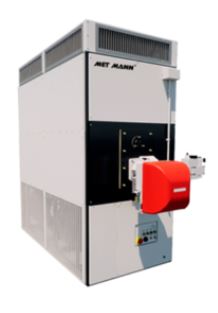

MM-300-G Base Cabinet Heater

Technical data.

Hot air generator with 300kW thermal power for fast and efficient heating of commercial, industrial and agricultural premises of up to 7350m3.

• Model: MM-300-G.

• Type of fuel: Gas oil, natural gas or propane gas.

• Rated power: 300 kW.

• Thermal performance: 92%.

• Air flow: 22,500m3/h.

• Motor power fan: 4.00kW.

• Electrical voltage: 400V/III/50Hz.

• Sound level at 3 m: 71 dB (A)

• Dimensions (Width / Bottom / Height): 1150/2100/2170mm.

• Drive section: 1960x1010mm.

• Smoke outlet: 250mm.

• Weight: 800 kg.

Main features.

• Compact and robust equipment.

• Tubular exchanger with thermal efficiency greater than 92%.

• Exterior finish in oven-dried polyester paint.

• Thermal insulation with air chamber and / or fiberglass.

• Double centrifugal fan unit with built-in motor.

• Electrical control panel and protection.

• Thermostats for the activation and stopping of the burner and fan.

• Safety thermostat.

• Upper hot air outlet to apply network of ducts, grids or rotating nozzles.

The MM range of Base Cabinet heaters come with a burner mounting plate cup and are compatible with Riello, Selas and Ecoflan burners.

Key features:

Additional information:

Brand: Met Mann
Warranty: 1 year warranty in compliance with ORGALIME S2000
Delivery: This item is usually stocked overseas and takes about 2 weeks to deliver. If held in UK stock, available for delivery in 3–4 days. Enquire on 01609 243164
