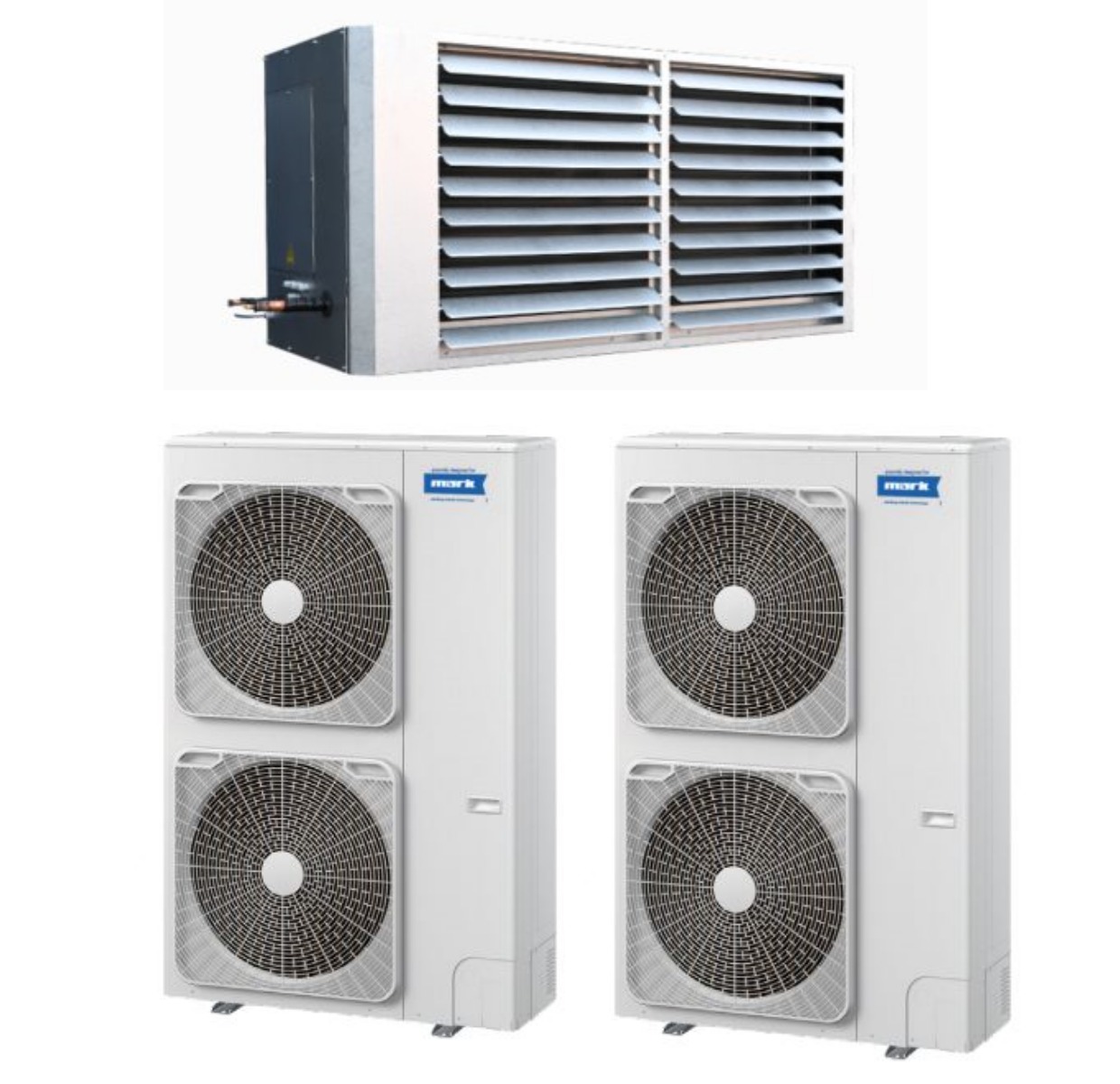

Mistral MDX 60

MISTRAL MDX industrial air to air heat pump.

A versitile heat pump system designed for commercial and industrial applications.

Eco-friendly heating and cooling solution with the Mark MISTRAL MDX. The Mark MISTRAL MDX is a industrial air to air heat pump system specifically engineered for the energy-efficient heating and cooling of large areas. This system integrates an outdoor air-to-air heat pump with a compact indoor air heater/cooler, delivering outstanding performance. The extensive configuration options allow for complete customization to meet the specific needs of the building and its occupants. With long pipe lengths up to 60m and a broad temperature range, the MISTRAL MDX is versatile enough for various applications, including heating and cooling in garages, warehouses, workshops, distribution centers, and showrooms.

MISTRAL MDX industrial air-to-air heat pump - Features.

• Available in capacities of 24 kW and 48 kW.

• Air-to-air heat pump.

• Capable of both cooling and heating.

• Wide temperature range.

• Indoor unit equipped with EC fan.

• Energy-efficient design.

• Pipe length up to 60m.

• Refilling not necessary up to 30 m.

• Refrigerant type: R32.

• Optional feature: integrated condensate pump.

• Isolator switch pre-assembled on indoor unit.

• Ambient temperature range indoor unit.

- Cooling: 17°C (80%) to 41°C (25%)

- Heating: 7°C to 24°C.

Key features:

• Nom heating capacity 48kW
• Nom cooling capacity 45kW
• Refrigerant R32
• Power supply Ph/V/Hz 3/380-415/50
• Nominal Consumed current A 23.8

Additional information:

• Brand: Mark
• Warranty: 2 year warranty in compliance with ORGALIME S2000
• Delivery: This item is usually built to order. Enquire on 01609 243164

Download PDF

For more information on Mistral MDX 60 talk to Puravent
