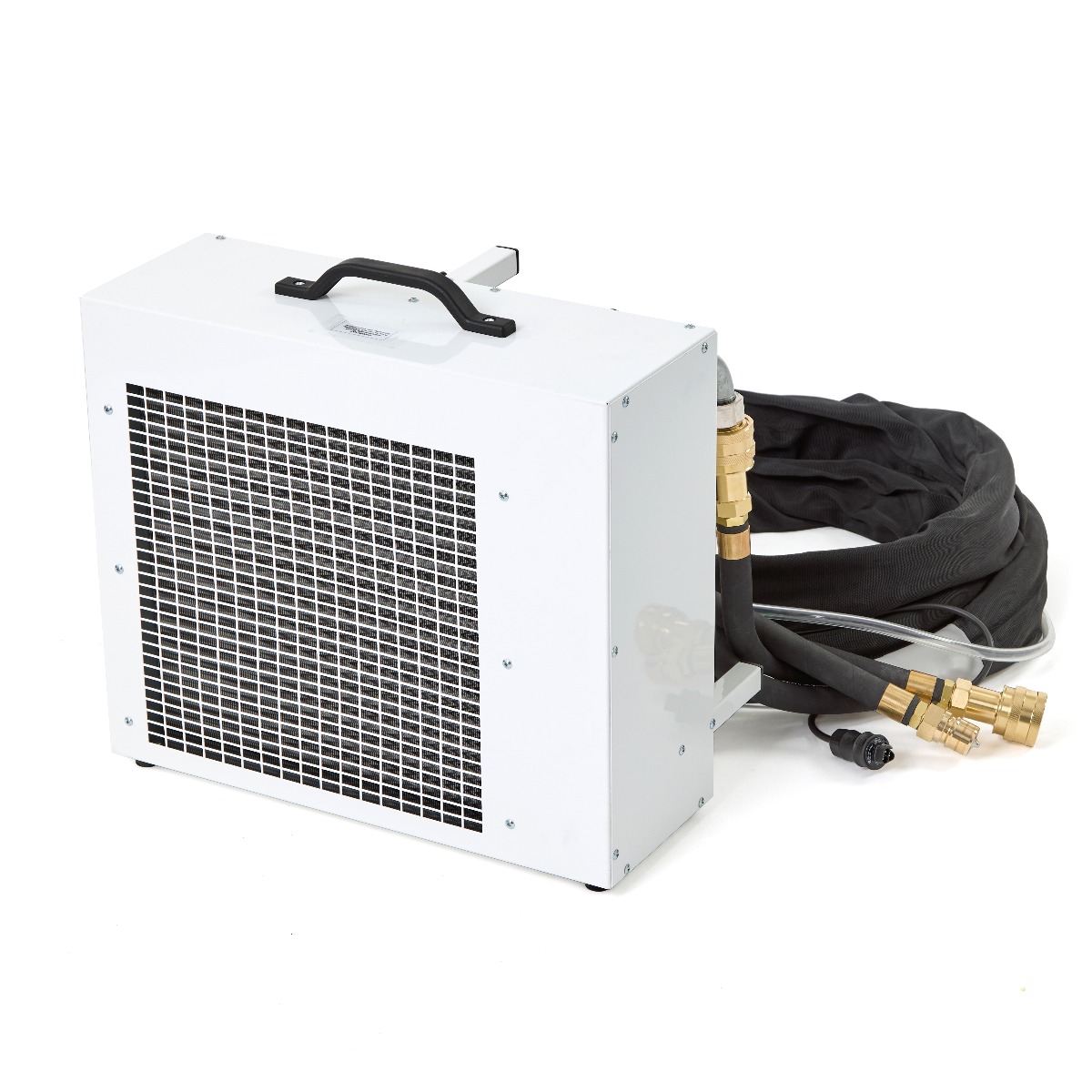

MCSe6.7

The MCSe6.7 redefines portable air conditioning efficiency. By utilizing air-to-water heat transfer instead of traditional air-to-air methods, it eliminates the performance-limiting conventional condenser. This innovative design makes the MCSe6.7 the most efficient portable air conditioning format available. Built with a full steel construction for commercial durability, it comes standard with a 5-meter umbilical line, digital thermostat control, condensate pump, and variable fan speed for complete convenience.

Nominal duty 6.7kW.

Supply 13A 230v.

Running current @ 35c/40% RH 12.4A.

Refrigerant R454C 700g.

Max Umbilical length 35m.

Lockable castors Yes.

Main Unit Airflow (max) 1,100m³.

Heat Exchanger Airflow (max) 3,100m³.

Weight Indoor Unit 110kg (wet)

Weight Heat Exchanger 25kg (wet)

Dimensions 1308 x 805 x 382mm.

Operating range 15°c-35°c.

IP Rating (Indoor/Outdoor) IP2X/IP24.

Max Water Temp 55.5c.

Max Noise (Indoor/Outdoor) 64/64dB.

GWP >150.

Key features:

• Nominal Cooling; 6.7Kw
• Standard supply: 230V
• Operating range 15 - 35°C
• Line Length: up to 35m

Additional information:

• Brand: Broughton
• Warranty: 2 years manufacturer's warranty
• Delivery: Dependent on stock availability. Check with us before ordering

Download PDF

For more information on MCSe6.7 talk to Puravent
