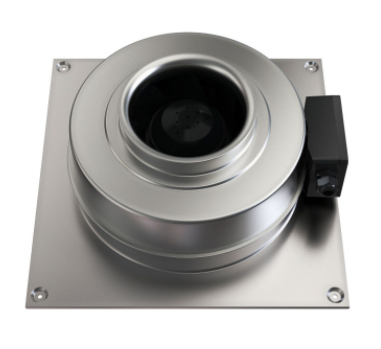

KV 100 M sileo 200m³/h Centrifugal circular duct fan

• Speed-controllable.

• Quiet-running.

• Increased efficiency.

• Integral thermal contacts.

• Can be installed in any position - duct or wall mounted.

• Can be installed outdoors.

• Maintenance-free and reliable.

The KV sileoseries is designed for installation in ducts. All KV-fans have minimum 25 mm long spigot connections. The FK mounting clamp facilitates easy installation and removal, and prevents the transfer of vibration to the duct. The fans have backward-curved blades and external rotor motors. KV sileo fans can be speed-controlled via a stepless thyristor or a 5-step transformer.

To protect the motor from overheating the fan has integral thermal contacts with manual reset.

The casing is manufactured from galvanised sheet steel and folded which gives the fan a close to air tight casing, wet room applications of the fan are possible due to the air tight casing.

Additional information:

• Brand: Systemair
• Warranty: 1 year manufacturer's warranty
• Delivery: This item is usually stocked overseas and takes about 2–3 weeks to deliver. If held in UK stock, available for delivery in 3–4 days. Enquire on 01609 243164

Download PDF

For more information on KV 100 M sileo 200m³/h Centrifugal circular duct fan talk to Puravent
