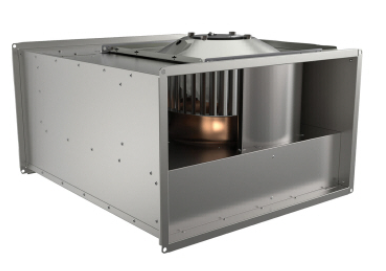

KTEX 50-25-4 rectangular duct fan

KTEX fans can be installed in any position and are easy to connect using the DS flexible connections. These fans have impellers with forward-curved blades and external rotor motors. The casing is manufactured from galvanised sheet steel, with a copper inlet cone.

To protect the motor from overheating, these fans have integral thermistors (PTC) with external leads which must be connected to the U-EK230E motor protection relay.

Explosion proof versions comply with EN 50014, EN 50019, EN 1127-1 and EN 13463-1. Improved safety in accordance with EEx e II T3. x II 2G Certified according to ATEX.

Speed controllable.

Integral thermistors (PTC *)

Maintenance-free and reliable.

Positive Temperature Coefficient.

Key features:

• 1,800m³/h
• 3 Phase
• 250 x 500mm connections.

Additional information:

• Brand: Systemair
• Warranty: 1 year manufacturer's warranty
• Delivery: This item is usually stocked overseas and takes about 2–3 weeks to deliver. If held in UK stock, available for delivery in 3–4 days. Enquire on 01609 243164

Download PDF

For more information on KTEX 50-25-4 rectangular duct fan talk to Puravent
