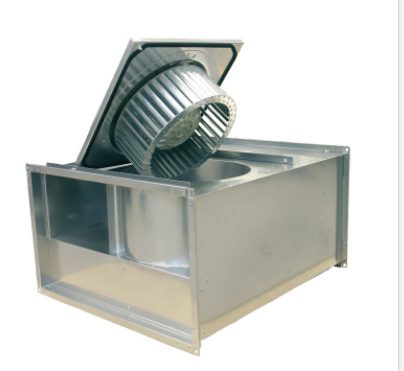

KT 40-20-4 Centrifugal rectangular duct fan. 1,325m³/h

The KT models have impellers with forward-curved blades and external rotor motors. The motor and impeller are mounted on the access cover to facilitate easy maintenance. The casing is manufactured from galvanised sheet steel. To protect the motor from overheating the fans have integral thermal contacts with external leads for connection to a motor protection device. The fans can be installed in any position and are easy to connect using the DS flexible connections. The KT fans have a pre-wired, integral terminal box.

Swing-out.

Speed-controllable.

Integral thermal contacts.

Can be installed in any position.

Maintenance-free and reliable.

KT 40-20-4 Centrifugal rectangular duct fan. 1,325m³/h.

Additional information:

• Brand: Systemair
• Warranty: 1 year manufacturer's warranty
• Delivery: This item is usually stocked overseas and takes about 2–3 weeks to deliver. If held in UK stock, available for delivery in 3–4 days. Enquire on 01609 243164

Download PDF

For more information on KT 40-20-4 Centrifugal rectangular duct fan. 1,325m³/h talk to Puravent
