Description.

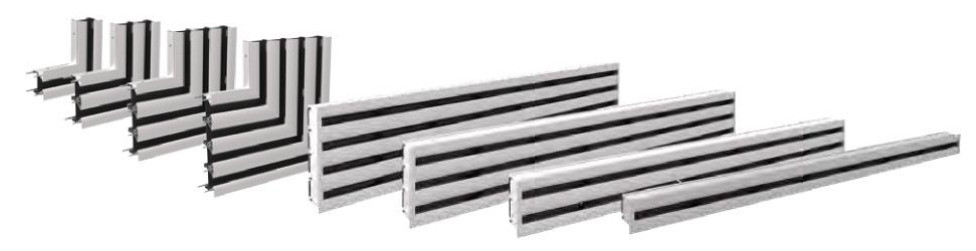

KSV is a slot diffuser primarily designated for air supply. It is suitable for installation into ceilings or into walls. The installation of this slot diffuser is possible with or without plenum box.
Highlights.
long impact.
high induction.
direction set up by adjustable deflectors.
narrow construction.
comfort design.
modularity.
1 to 4 slots on diffuse available.
The way of air direction is set up by changing the inner deflector position. This deflector has 5 alternative positions for different air flow patterns (horizontal left/right, diagonal left/right and vertical). Besides these basic positions it is possible to set the deflector into 2 mounting positions, which are used for mounting KSV to the plenum box or mounting bridge or for adjustment of the plenum box regulating damper.
Design.
KSV is made of extruded aluminium profile with elox surface and the inner part of the slot is plastic. Plenum box of the slot with both socket and regulating damper are made of galvanized steel sheet. Plenum box can be supplied with sound attenuating material from the inner side or thermal insulating material from outer side.
Mounting.
On plenum box or on the false ceiling using mounting brigdes. The thread bolts fix the diffuser in installed position.
The KSV product range covers over 150 different product lines.
Additional information:
- Brand: Systemair
- Warranty: 1 year manufacturer's warranty
- Delivery: This item is usually stocked overseas and takes about 2–3 weeks to deliver. If held in UK stock, available for delivery in 3–4 days. Enquire on 01609 243164
For more information on KSV is a slot diffuser primarily designated for air supply. It is suitable for installation into ceilings or into walls. The installation of this slot diffuser is possible with or without plenum box. talk to Puravent
