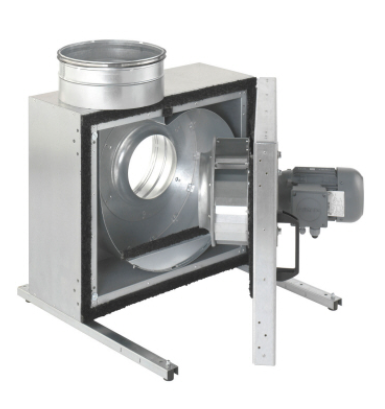

KBR/F 315D2 IE3 Centrifugal smoke extract box fan 4,125m³/h, insulated. 200°C continuous, Max 400°C for 2 hours

The KBR/F fans smoke extract unit are used in case of fire to extract smoke gases from rooms, and also during normal working conditions for standard temperature up to 200°C.

The KBR/F units have backward curved impellers made of galvanized steel expect size 355 which is a steel impeller painted RAL 9005. The unit have a swing out door for easy inspectionand service. The direction of the door opening can easily be changed from left to right at site. The fan have a double isolated casing with 50 mm rockwool inside.

To protect the motors from overheating the KBR fans have integral thermal contacts with external leads for connection to a motor protection device. (Except size KBR 280 D2 and D2-4 which have integral cold conductors). In case of fire all protective devices must be bridged to guarantee functional capability.

KBR/F fans smoke extract unit are used in case of fire to extract smoke gases from rooms, and also during normal working conditions for standard temperature up to 200.

400°/120 min (F400)

Insulated casing.

Speed-controllable.

Integral thermal contacts.

Low sound level.

Tested acc. to EN 12101-3 at LGAI Barcelona.

CE-certified acc. to EN 12101-3, 2002-06 at TÜV Süd.

Additional information:

• Brand: Systemair
• Warranty: 1 year manufacturer's warranty
• Delivery: This item is usually stocked overseas and takes about 2–3 weeks to deliver. If held in UK stock, available for delivery in 3–4 days. Enquire on 01609 243164

Download PDF

For more information on KBR/F 315D2 IE3 Centrifugal smoke extract box fan 4,125m³/h, insulated. 200°C continuous, Max 400°C for 2 hours talk to Puravent
