Jumbo 235M. 218kw Diesel fired heater

INDIRECT COMBUSTION HEAVY DUTY MOBILE SPACE HEATERS WITH AXIAL FAN.

Burner cover:

- protects the burner against blows, dust, water, weather and collects diesel fuel/condensation in a recovery basin.

- Burner is supplied with snorkel jack to ensure clean air combustion through connection with outdoor air uptake duct.

- The new heat exchanger with the newly designed higher performance fans ensure heat efficiency of 92 - 93%.

- Better anchorage to the machine’s weight bearing structure through sturdy attachment rods which allow for movement on any floors.

- Bearing structure with removable panels for interior washing, also available in hanging models.

- Panels with reinforcement cross pleats to ensure superior rigidity and strength.

- Exclusive use of metric screws and inserts for fastening, no self-tapping screws.

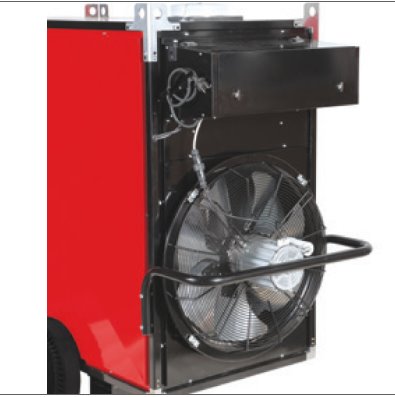

Ventilator (IP 55):

- in conformity with European directives ERP 2009/125/CE target 2015.

- very low noise fan (noise level ≤ 67db at 2 meters)

- 7-blade fan with high performance (air flow and static pressure) for uniform diffusion of warm air through duct.

- fan outlet cone to convey air and ensure high static pressure.

Control rear electrical panel (IP 65):

- located at the top rear of the machine to avoid contact with dust, water, snow.

- supplied with a sturdy metal cover to prevent damage and unauthorized access; also handy for storage of tools, papers, etc;.

Service front electrical panel:

- located at the front of the machine inside the burner cover lid to prevent contact with dust, water, snow and for easier maintenance; to facilitate controls and maintenance by the operator.

Every main component (fan, burner, thermostats, etc.)

- is supplied with quick couplings of electrical connections IP68:

- fast assembly, disassembly and technical maintenance.

- eliminates installation/disassembly mistakes.

Key features:

• Rated Heat Power: 235Kw
• Airflow: 17000m³/h
• Fuel Cube/Oil Tank Optional
• Fuel Consumption: 18.65kg/h

Additional information:

• Brand: Arcotherm
• Warranty: 1 year manufacturer's warranty
• Delivery: Normally 2 - 3 working days. Expect within 5 working days of order

Download PDF

For more information on Jumbo 235M. 218kw Diesel fired heater talk to Puravent
