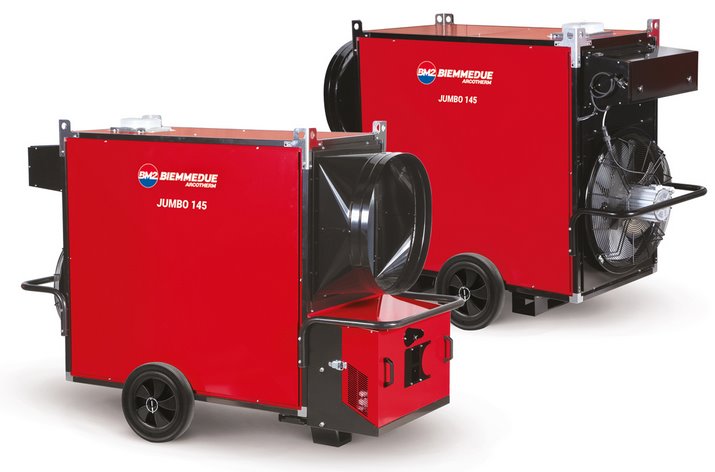

JUMBO 145 M without burner

Our Jumbo Heavy-Duty Oil Fired Indirect Combustion Heaters are for heating enclosed areas, such as marquees, workshops, warehouses, & areas on building construction sites and can also be used for drying: buildings after flooding, or crop drying.

Fitted with an ecoflam oil burner, these heavy-duty heaters are hard wearing, and the front burner cover protects the burner assembly as well as allowing for easy access for maintenance.

Features Include.

IP55 rated 7 blade fan, giving a noise output of just 67 decibels at 2 metres.

Electronic flame control with photo resistance sensor.

Rear mounted electric control panel.

Designed to warm large spaces. Can be switched from heating mode to ventilation mode. Supplied with oil fired burner, tigerloop, 1 way outlet, thermostat, 1m flue & cowl. Five models to choose from; 80kW, 102kW, 135kW, 171kW & 217kW. All heaters are supplied with 1.5m power cord.

Optional accessories include 2way or 4way outlet, ducting, air inlet adaptor and ducting, lifting kit, pre-heated fuel filter, flue storage kit, swivelling wheels, fuel tank.

Optional accessories include 2way or 4way outlet, ducting, air inlet adaptor and ducting, lifting kit, pre-heated fuel filter, flue storage kit, swivelling wheels, fuel tank.

Key features:

• Rated Heat Power: 144,72Kw
• Output Heat Power: 134,87Kw
• Heat Efficiency: 93.2%
• Effective Heat Range: 46m

Additional information:

• Brand: Arcotherm
• Warranty: 1 year manufacturer's warranty
• Delivery: This item is usually stocked overseas and takes about 2–3 weeks to deliver. If held in UK stock, available for delivery in 3–4 days. Enquire on 01609 243164

Download PDF

For more information on JUMBO 145 M without burner talk to Puravent
