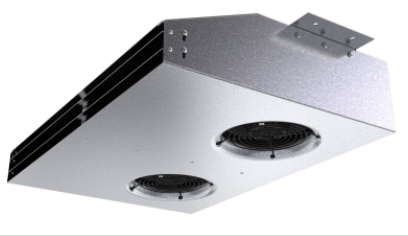

IV Smart EC Centrifugal induction fan, 55°C continuous. 2,280m³/h

Green Ventilation Jet fan with energy-efficient EC technology for day-to-day ventilation, Co monitoring and cold smoke extraction. Green Ventilation jet fan with energy-efficient EC technology for day-to-day ventilation, CO monitoring and cold smoke extraction. For you as a HVAC planner or garage operator, the IV smart can meet whatever requirements you need. Currently the most compact jet fan on the market. You get a safe solution even for garages with low ceilings. Low weight and integrated galvanised steel ceiling mount. Can be mounted quickly, easily and safely. Available in 50/60 Hz, 230V EC motors with IP 44, as per EN 60034-5/IEC 85. Two parallel Sileo centrifugal impellers made from plastic and an aerodynamically optimized outlet.

100% speed controllable via 0-10V signal.

Integrated motor protection.

Casing is made from galvanised steel.

Suitable for temperature up to 55°C.

External terminal box for easy electronic connection.

Additional information:

• Brand: Systemair
• Warranty: 1 year manufacturer's warranty
• Delivery: This item is usually stocked overseas and takes about 2–3 weeks to deliver. If held in UK stock, available for delivery in 3–4 days. Enquire on 01609 243164

Download PDF

For more information on IV Smart EC Centrifugal induction fan, 55°C continuous. 2,280m³/h talk to Puravent
