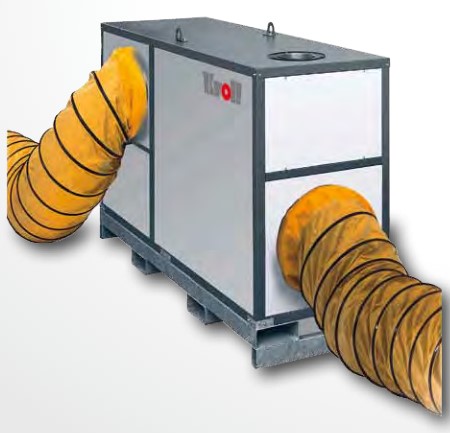

HM500 380/543kw oil fired heat plant
Product Code: HM500
The Kroll HM500 is a well specified skid mounted, oil fired heating plant. Producing 380/543kw output, it is an excellent temporary heating system, or equally can be installed as a perminant heating plant. Ideal for temporary heating or drying applications as well as for industrial and commercial heating requirements. Call us if you need help and pricing on a Kroll HM500 package with ancillery items eg, thermostat, flue pipe, plenums etc.
Fuel.
Oil.
Rated heat load kW.
380/543.
Rated heating power kW.
330/500.
Air rate m3/h.
2270/31300.
External pressure Pa.
400.
Temperature rise (Δt) Kelvin.
53/55.
Fuel consumption.
32.4/38.2 kg/hr.
Power connection V/Hz/A.
400/3N~/13.5.
Absorption of electrical power kW.
6.5/17.
Flue pipe Ø mm.
300.
Width mm.
1600.
Length mm.
4900.
Height incl crane eye.
2350.
Weight kg.
2500.
Noise level dB(A)
75.
Out of stock.
Additional information:
- Brand: Kroll
- Warranty: 1 year manufacturer's warranty
- Delivery: This item is usually stocked overseas and takes about 2 weeks to deliver. If held in UK stock, available for delivery in 3–4 days. Enquire on 01609 243164
For more information on HM500 380/543kw oil fired heat plant talk to Puravent
