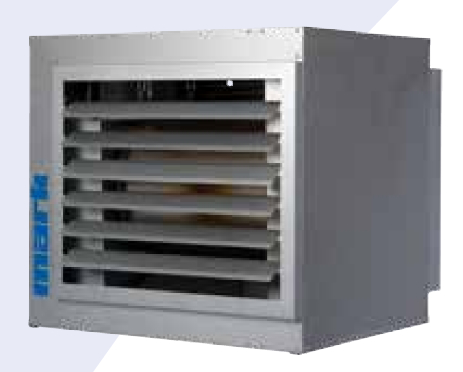

GS+ 80, Condensating Air Heater with EC fan

Puravent are the UK mainland distributor for Mark Climate Technology.

We offer the GS+ range of gas-fired, high performance air heater with an axial fan. This condensing equipment provides efficiency greater than 106% (lower value). Heat is generated via a modulating premix burner which results in very low gas consumption.

The GS+ is operated using an Optitherm+ clock thermostat or an Interface+ module that allows a connection with the BMS (building management system) via Modbus or a 0-10V contact. The Optitherm+ also makes it possible to control the GS+ units remotely with an app for mobile phone and tablet (available soon).

The GS+ is suitable in many situations due to its extensive capacity range from 13,6 to 142,2 kW. The GS+ is designed to heat garages, warehouses, distribution centres and showrooms.

Features of the Mark GS+.

• Efficiency >106%.

• Energy-saving.

• Environmentally-friendly.

• Modulating premix burner.

• Outlet temperature sensor.

• Low temperature rise of the exit air.

• Low thermal stratification of the heated air.

• Stainless steel heat exchanger.

• Corrosion-resistant aluzinc housing.

Standard equipment.

• Stainless steel combustion chamber & heat exchanger.

• Closed combustion circuit.

• Advanced modulating burner technology.

• Electronic ignition.

• Low NOx.

• Powerful axial fan(s)

• Downflow hood with horizontal louvres.

• CE-approval.

• PIN 0063BP3341.

• Carbon trust (UK)

• Optional: speed controlled low noise EC-motor.

Advantages:

• The highest efficiency in case of speed control.

• Up to 50% energy saving in case of partial load.

• Almost completely linearly adjustable.

• Long lifetime.

• Low noise level.

• Integrated electronic thermal protection.

Key features:

• Max power: 75.6kw
• Modulating EC fan
• Air flow: 10000m³/h
• Throw: 35 - 46m
• Power 230V - 480w

Additional information:

• Brand: Mark
• Warranty: 1 year warranty in compliance with ORGALIME S2000
• Delivery: This item is stocked overseas. Please contact the office for leadtime.

Download PDF

For more information on GS+ 80, Condensating Air Heater with EC fan talk to Puravent
