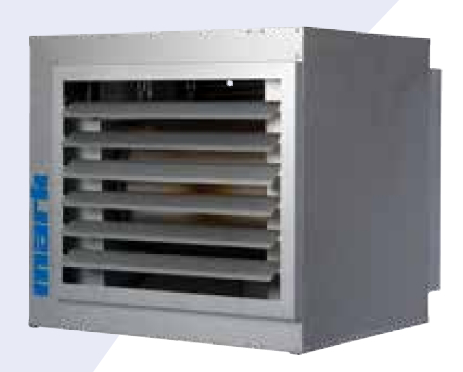

GS+ 40, Condensing Air Heater
Product Code: GS+ 40
Puravent are the UK mainland distributor for Mark Climate Technology.
We offer the GS+ range of gas-fired, high performance air heater with an axial fan. This condensing equipment provides efficiency greater than 106% (lower value). Heat is generated via a modulating premix burner which results in very low gas consumption.
The GS+ is operated using an Optitherm+ clock thermostat or an Interface+ module that allows a connection with the BMS (building management system) via Modbus or a 0-10V contact. The Optitherm+ also makes it possible to control the GS+ units remotely with an app for mobile phone and tablet (available soon).
The GS+ is suitable in many situations due to its extensive capacity range from 13,6 to 142,2 kW. The GS+ is designed to heat garages, warehouses, distribution centres and showrooms.
Features of the Mark GS+.
• Efficiency >106%.
• Energy-saving.
• Environmentally-friendly.
• Modulating premix burner.
• Outlet temperature sensor.
• Low temperature rise of the exit air.
• Low thermal stratification of the heated air.
• Stainless steel heat exchanger.
• Corrosion-resistant aluzinc housing.
Standard equipment.
• Stainless steel combustion chamber & heat exchanger.
• Closed combustion circuit.
• Advanced modulating burner technology.
• Electronic ignition.
• Low NOx.
• Powerful axial fan(s)
• Downflow hood with horizontal louvres.
• CE-approval.
• PIN 0063BP3341.
• Carbon trust (UK)
• Optional: speed controlled low noise EC-motor.
Advantages:
• The highest efficiency in case of speed control.
• Up to 50% energy saving in case of partial load.
• Almost completely linearly adjustable.
• Long lifetime.
• Low noise level.
• Integrated electronic thermal protection.
Key features:
- Max power: 37.9kw
- Min power: 9.2kw
- Air flow: 5000m³/h
- Throw: 26 - 36m
- Power 230V - 290w
Additional information:
- Brand: Mark
- Warranty: 1 year warranty in compliance with ORGALIME S2000
- Delivery: This item is stocked overseas. Please contact the office for leadtime.
For more information on GS+ 40, Condensing Air Heater talk to Puravent
