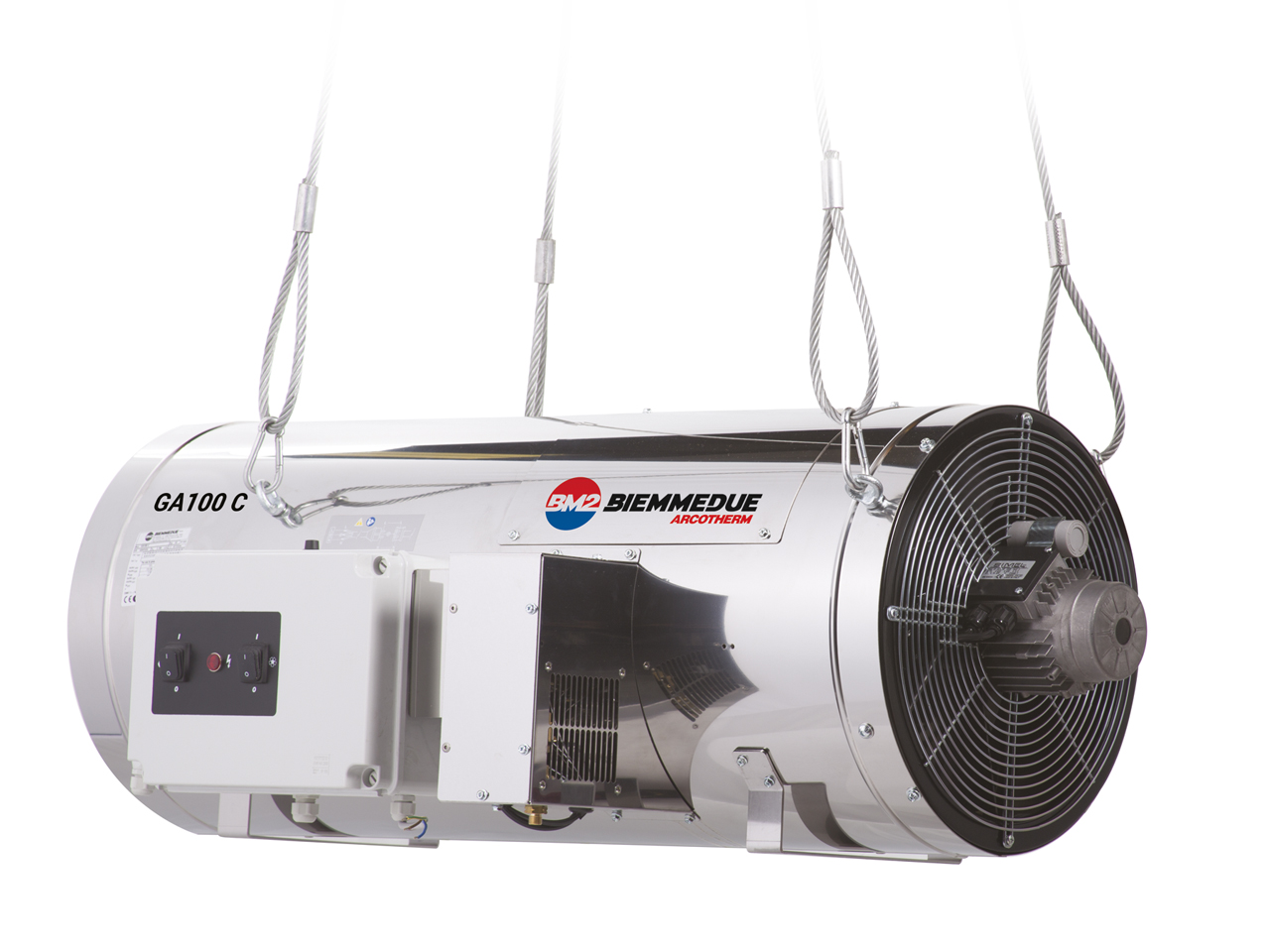

GA/N 70 C Suspended Low Pressure Gas Direct Fired Space Heater

GA/N - Suspended Low pressure Gas Direct Fired space Heaters.

• Automatic built-in LPG o natural gas burner to give very low emissions of CO, NOx and Ethylene.

• Electric board IP 65.

• Set to be connected to a thermostat or a humidistat or a timer.

• High-grade AISI 430 stainless steel design.

• Automatic ignition.

• Flame monitored by an ionisation probe.

• Overheating thermostat.

• Connectable for climate computer.

• Monitoring the fan air pressure by a vane switch IP 65.

• Gas train in IP65 sealed box.

• IP 55 motor installed in a easy clean position to avoid overheating.

• Continue post ventilation (fan always switch on) or temporized post ventilation (30 seconds)

• Summer-winter switch to use as a fan.

• Conforms to norms UNI EN 17082:2019.

• Suspending brackets.

• Low voltage control.

• Power selector 95-115 kW (GA/N 115)

Key features:

• Rated Heat Power, Nat Gas: 71,27Kw
• Rated Heat Power, LPG: 70,26Kw
• 230V
• Fuel Consumption, LPG: 4,89kg/h
• Air flow: 4,700m³/h
• Heat Efficiency: 100%

Additional information:

• Brand: Arcotherm
• Warranty: 1 year manufacturer's warranty
• Delivery: Normally 2 - 3 working days. Expect within 5 working days of order

Download PDF

For more information on GA/N 70 C Suspended Low Pressure Gas Direct Fired Space Heater talk to Puravent
