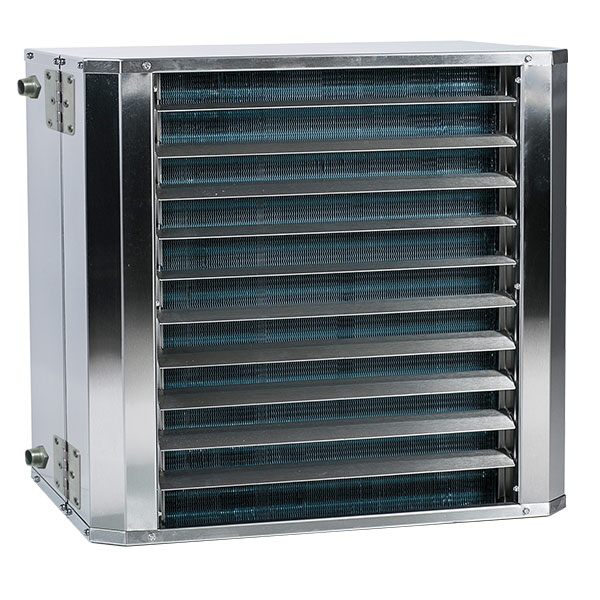

Frico SWXH23 Fan heater 23kw
Product Code: 31155
SWX is a range of fan heaters suitable for environments with strict demands on materials and safety. Models are available for use in dusty or corrosive environments and in rooms with high temperatures.
Fan heater SWX has a robust design, adapted to the requirements of harsh environments. Supplied with air director with individually adjustable louvres that direct the air flow on one plane. The front of the SWX H has an inspection hatch with quick release.
<.
Type of heating.
Water coil.
(measurement)
Width.
705.
mm.
Height.
655.
mm.
Depth.
430.
mm.
Weight.
46.
kg.
Colorcasing.
StainlesssteelEN1.4016.
Color,outlet grilles.
Aluminum.
Protection class.
IP65.
Ambient working temperature (dryconditions)
70.
°C.
Airflow step 5.
3870.
m³/h.
Sound level step 5.
68.
dB(A)
Control/motor supply.
230.
V.
Phase.
1.
~.
Control/motor current.
1.35.
A.
Max.water temperature.
150.
°C.
Max.working pressure.
10.
bar.
Dimension water connections.
Cu22.
Water heating full output 80/60°C,air+40°C.
23.1.
kW.
For High temperature environments.
Additional information:
- Brand: Frico
- Warranty: 1 year manufacturer's warranty
- Delivery: Dependent on stock availability. Check with us before ordering
For more information on Frico SWXH23 Fan heater 23kw talk to Puravent
