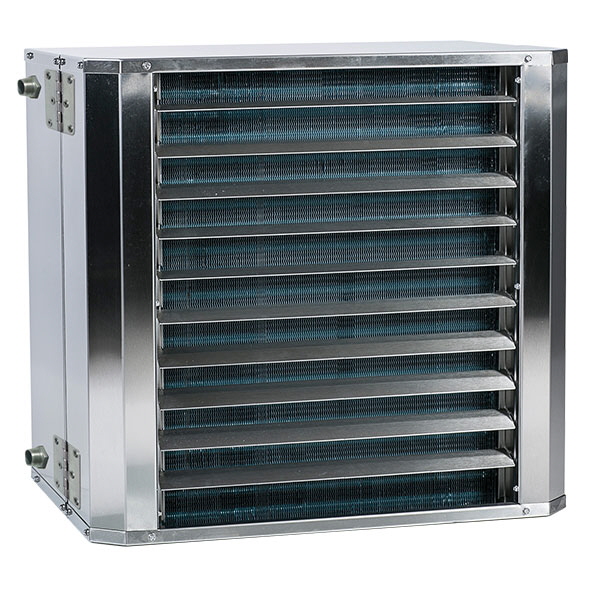

Frico SWXH13 Fan heater, 12kw
Product Code: 31154
SWX is a range of fan heaters suitable for environments with strict demands on materials and safety. Models are available for use in dusty or corrosive environments and in rooms with high temperatures.
Fan heater SWX has a robust design, adapted to the requirements of harsh environments. Supplied with air director with individually adjustable louvres that direct the air flow on one plane. The front of the SWX H has an inspection hatch with quick release.
•SWX H is intended for rooms with high temperatures, up to 70°C, such as in the drying and curing industry as well for decontamination.
Type of heating.
Water coil.
(measurement)
Width.
550.
mm.
Height.
530.
mm.
Depth.
380.
mm.
Weight.
28.
kg.
Color casing.
Stainless steel EN1.4016.
Color,outlet grilles.
Alluminium.
Protection class.
IP65.
Ambient working temperature (dry conditions)
70.
°C.
Airflow step 5.
1830.
m³/h.
Sound level step 5.
57.
dB(A)
Control/motor supply.
230.
V.
Phase.
1.
~.
Control/motor current.
0.5.
A.
Max.water temperature.
150.
°C.
Max.working pressure.
10.
bar.
Dimension water connections.
R3/4".
Water content in coil.
DN22.
l.
Water heating full out put 80/60°C, air+15°C.
23.
kW.
For damp/corrosive environments.
Additional information:
- Brand: Frico
- Warranty: 1 year manufacturer's warranty
- Delivery: Dependent on stock availability. Check with us before ordering
For more information on Frico SWXH13 Fan heater, 12kw talk to Puravent
