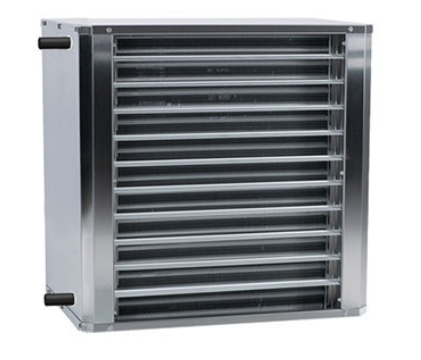

Frico SWXCE12 Fan heater 20kW
Product Code: 211773
SWX is a range of fan heaters suitable for environments with strict demands on materials and safety. SWX CS/CE is intended for corrosive and damp environments. SWX CS has a water coil made of stainless steel and SWX CE has an epoxy coated water coil.
Fan heater SWX has a robust design, adapted to the requirements of harsh environments. Supplied with air director with individually adjustable louvres that direct the air flow on one plane.
Type of heating.
Water coil.
(measurement)
Width.
550.
mm.
Height.
530.
mm.
Depth.
380.
mm.
Weight.
29.
kg.
Color casing.
Stainless steel EN1.4404.
Color,outlet grilles.
Stainless steelEN1.4404.
Protection class.
IP65.
Ambient working temperature (dryconditions)
70.
°C.
Airflow step 5.
4300.
m³/h.
Sound level step 5.
69.
dB(A)
Control/motor supply.
230.
V.
Phase.
1.
~.
Control/motor current.
0.51.
A.
Max.water temperature.
150.
°C.
Max.working pressure.
2.1.
bar.
Dimension water connections.
G 3/4".
Water content in coil.
1.6.
l.
Water heating full out put 80/60°C, air+15°C.
21,0.
kW.
For damp/corrosive environments.
Additional information:
- Brand: Systemair
- Warranty: 1 year manufacturer's warranty
- Delivery: This item is usually stocked overseas and takes about 2–3 weeks to deliver. If held in UK stock, available for delivery in 3–4 days. Enquire on 01609 243164
