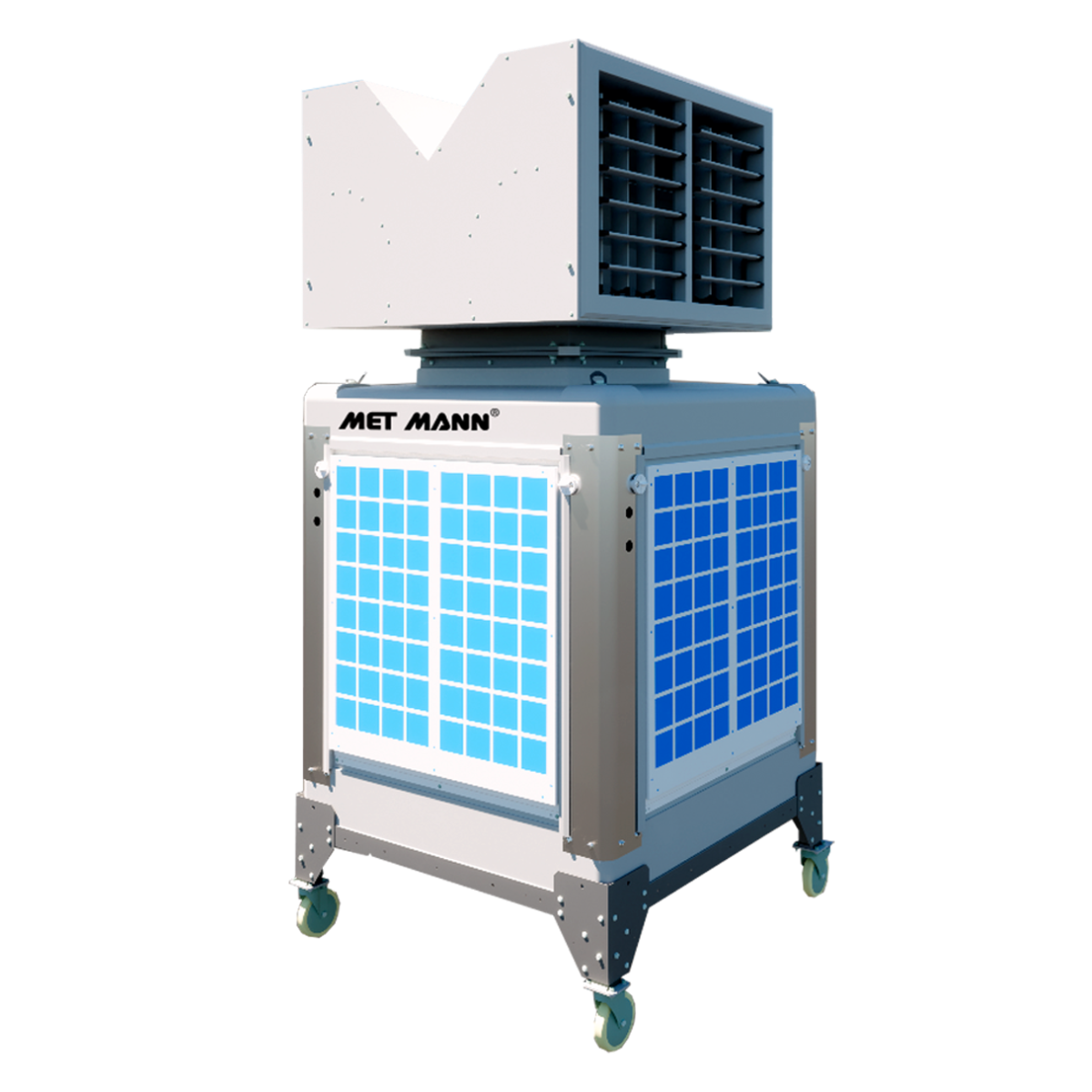

FR-07-100-007-VR DUO Portable industrial evaporative cooler

Technical data.

Portable evaporative cooler of 5,760m³/h.

• Model: FR-07-100-007-VR DUO.

• Air flow: 5,760m³/h.

• Cooler panel thickness: 100mm.

• Panel efficiency: 90%.

• Fan motor power: 0.75 kW.

• Fan speed: Variable.

• Sound level at 3m: 66 dB (A)

• Voltage: 220V/I/50Hz.

• Dimensions W/D/H: 825/825/1795mm.

• Weight: 110kg.

Main features.

• Water tray and roof made of thick polypropylene with UV protection.

• Posts made of AISI-304 stainless steel.

• Cooling panels type 5090, 100mm thick.

• Intake grilles painted in polyester oven in gray RAL 7035.

• Centrifugal fan group in galvanized steel.

• Electrical panel with variable speed with ON/OFF switch.

• 10m hose with quick plug system.

• Manual emptying system.

• Quick opening of the panels with half-turn fasteners.

• Hydraulic and electrical installation connected at the factory.

• Air diffusion with front grill or DUO grill (optional).

Key features:

Additional information:

Brand: Met Mann
Warranty: manufacturer's warranty of 5 years on structure and 1 year on other components, effective once the equipment has either been installed by Puravent or installed by others and commissioned by Puravent
Delivery: This item is normally assembled to order in mainland Europe and delivered direct
