Flatline 3000 LW
Product Code: 5997430
The Mark FLATLINE LW compact heat recovery unit represents an optimal choice for energy-efficient ventilation and the maintenance of a comfortable indoor environment. This unit features a counterflow plate exchanger that achieves a heat recovery efficiency of 90%, allowing for 90% of the extracted energy to be transferred to the incoming fresh air. As a result of this high efficiency, additional heating is typically unnecessary in most scenarios.
Factory-tested and delivered as a Plug & Play solution, the ceiling heat recovery units are versatile and suitable for various applications, including offices, showrooms, apartment complexes, and educational institutions. Their low profile makes them particularly well-suited for installation above suspended ceilings. The Mark FLATLINE LW is designed as a decentralized heat recovery unit, and the mechanical integrity of its casing has been verified in accordance with NEN-EN 1886 standards.
• Deflection: Class D3.
• Air leakage: Class L2.
• Thermal transmission: Class T4.
• Thermal bridging: Class TB4.
Product range features.
Quiet.
Compact and standard designs.
Double-walled insulated aluminum AlMg3 casing.
Aluminum counterflow heat exchanger.
Bypass for night ventilation and cooling.
EC fans.
Integrated Plug&Play control.
Can be connected to GBS, BACnet or Modbus via the internet.
Air quantities from 400-3200m3/h.
Efficiency >90%.
Indoor installation.
Supply filter ePM1 55%.
Drain filter ePM10 75%.
Filter pressure monitoring.
On/off contact.
Fire contact.
Available from stock.
Optional:
• Water-Supplied Heating Battery.
• Water-supplied cooling system.
• Damper section.
• Channel progression from rectangular to round.
• Louvered dampers for supply and discharge sides.
• Constant pressure control (supply)
• CO2 control (not in combination with pressure control)
• Room temperature control.
Specification.
FlatLine LW.
3000.
Maximum air amount.
m3 /h.
3000.
Maximum external pressure.
Pa.
300.
Efficiency up to.
%.
90.
Total power consumption per unit.
KW.
1,54.
Max power consumption per unit.
KW.
2.
Nominal per unit.
A.
7,12.
Max power consumption per unit.
A.
9,4.
Sound pressure level1.
dB(A)
47.
Supply voltage (50hz)1.
V.
1-230.

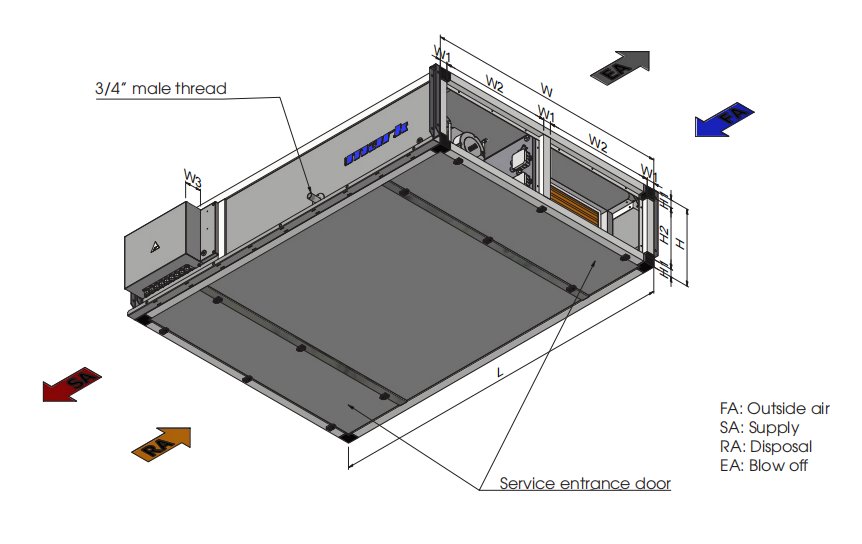

Dimensions.
L x W x H mm.
2340 x 1890 x 490.
1 on a 5 meter free field at Pextern is 100Pa.
Key features:
- Airflow 3000m3/hr
- Total Power consumption 1.54kw
- Supply 230v 1ph 50Hz
- Dimensions 2340 x 1890 x 490mm
Additional information:
- Brand: Mark
- Warranty: 1 year warranty in compliance with ORGALIME S2000
- Delivery: This item is stocked overseas. Please contact the office for leadtime.
For more information on Flatline 3000 LW talk to Puravent
